Heated Seat Block Diagram

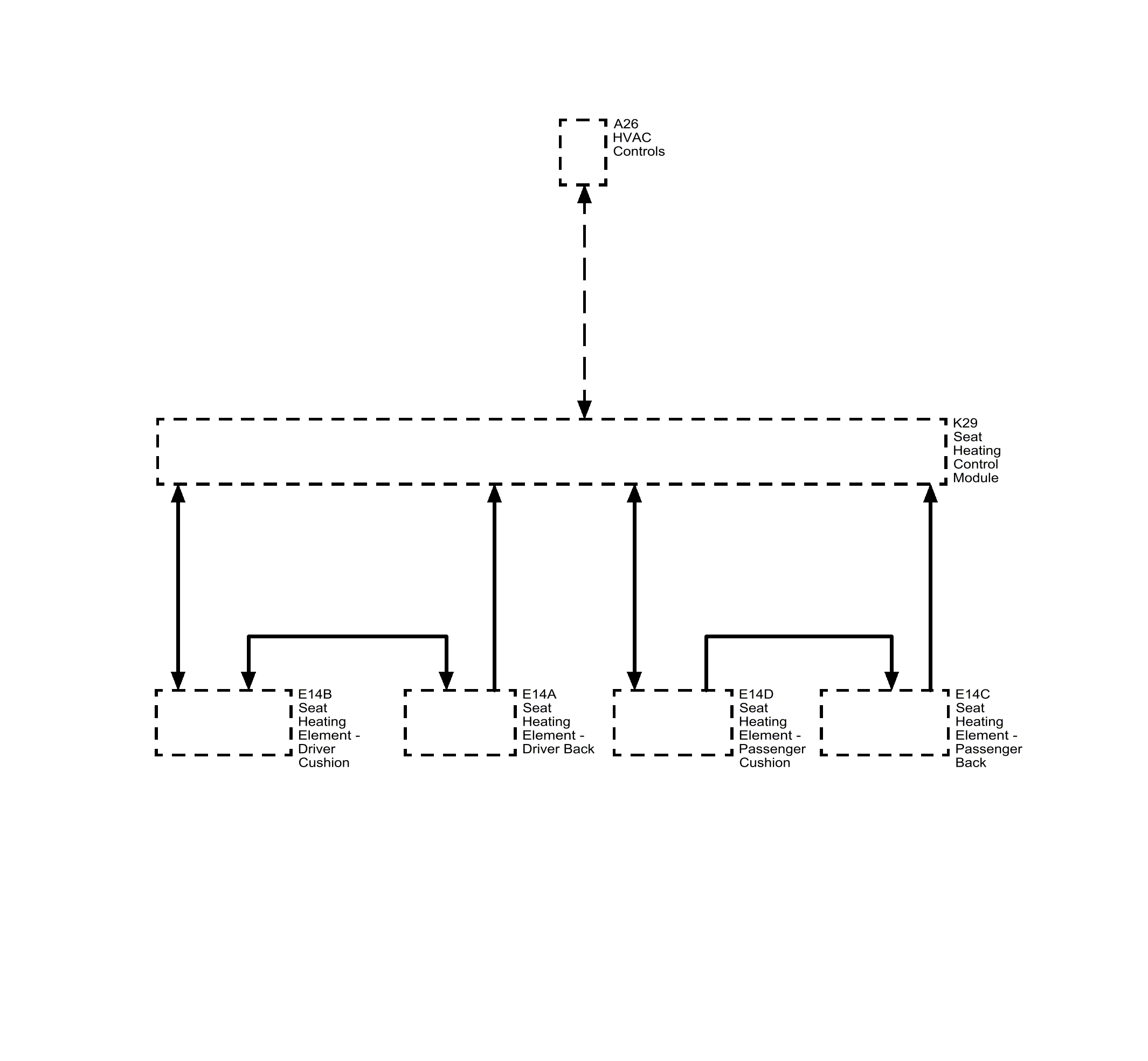

Fig 1: Heated Seat Block Diagram
GM3460792Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
K29 K29 Seat Heating Control Module
E14C E14C Seat Heating Element - Passenger Back
E14D E14D Seat Heating Element - Passenger Cushion
E14A E14A Seat Heating Element - Driver Back
E14B E14B Seat Heating Element - Driver Cushion
A26 A26 HVAC Controls
