Rear Seat Back Side Cushion Cover Replacement

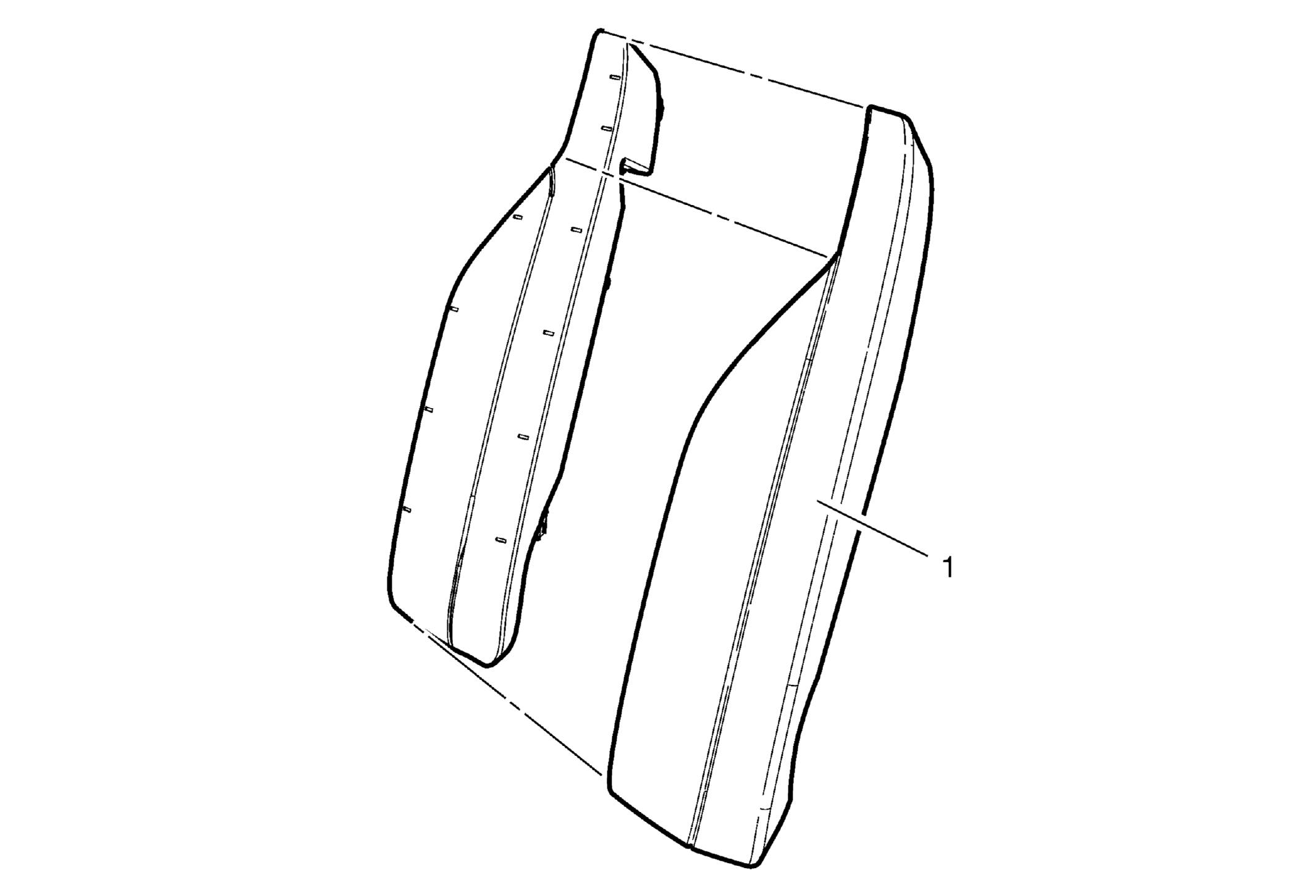

Fig 1: Rear Seat Back Side Cushion Cover
GM2373179Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury.

Remove the rear seat side inflatable restraint module. Refer to Rear Seat Outboard Seat Back Airbag Replacement .
1 Rear Seat Back Side Cushion Cover

Procedure

  1. Loosen the rear seat back side cushion cover.
  2. Remove the hog rings.
  3. Remove the rear seat back side cushion cover.
  4. Attach the rear seat back side cushion cover and install the hog rings.
  5. Install the rear seat back side cushion cover.
