Front Seat Tilt Adjuster Lever Replacement

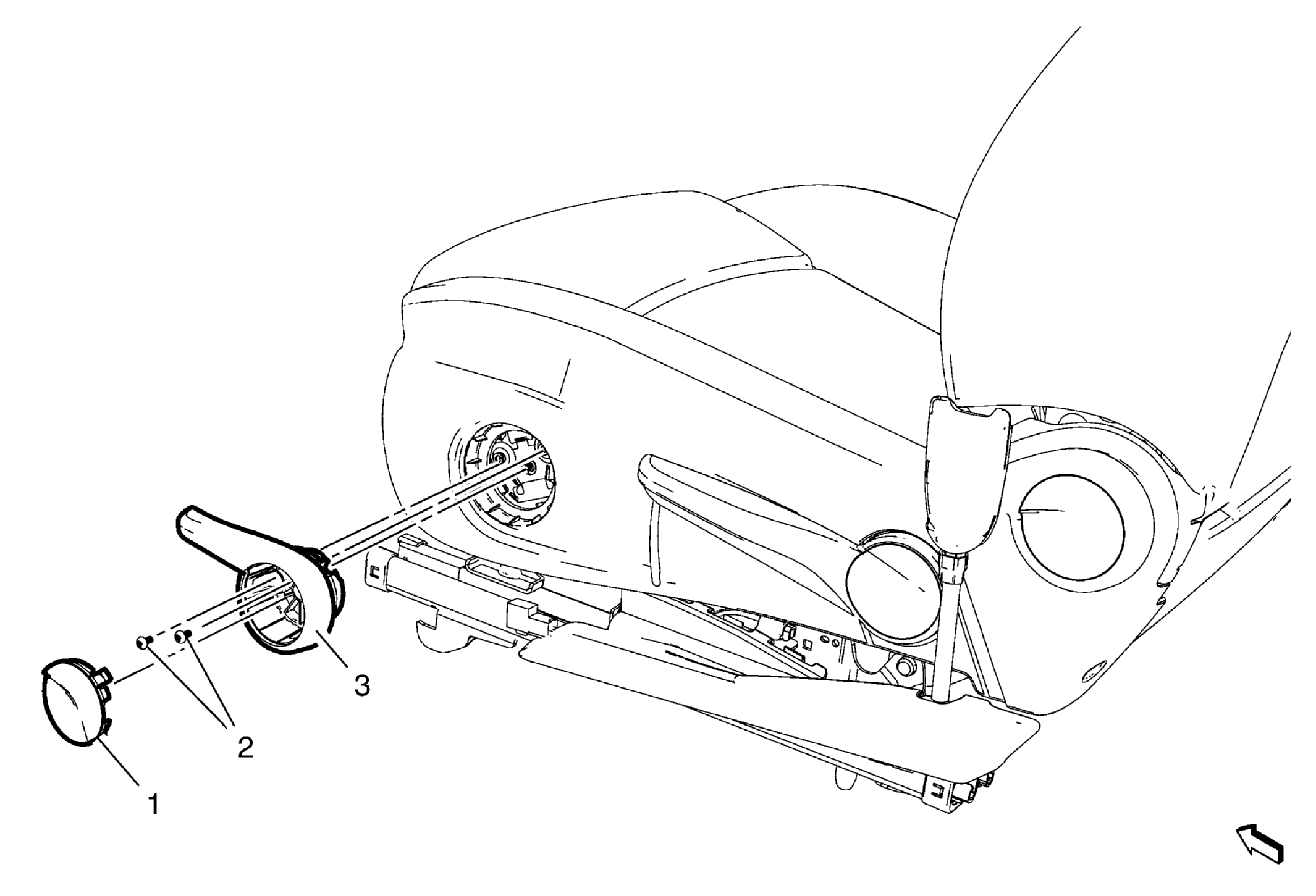

Fig 1: Front Seat Tilt Adjuster Lever
GM2373127Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Tilt Adjuster Lever Bolt Cap
2 Front Seat Tilt Adjuster Lever Fastener (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
20 N.m (15 lb ft)
3 Front Seat Tilt Adjuster Lever
Procedure
Use a small flat-bladed tool to release the front seat tilt adjuster lever bolt cap.
