Front Seat Cushion Inner Trim Panel Replacement

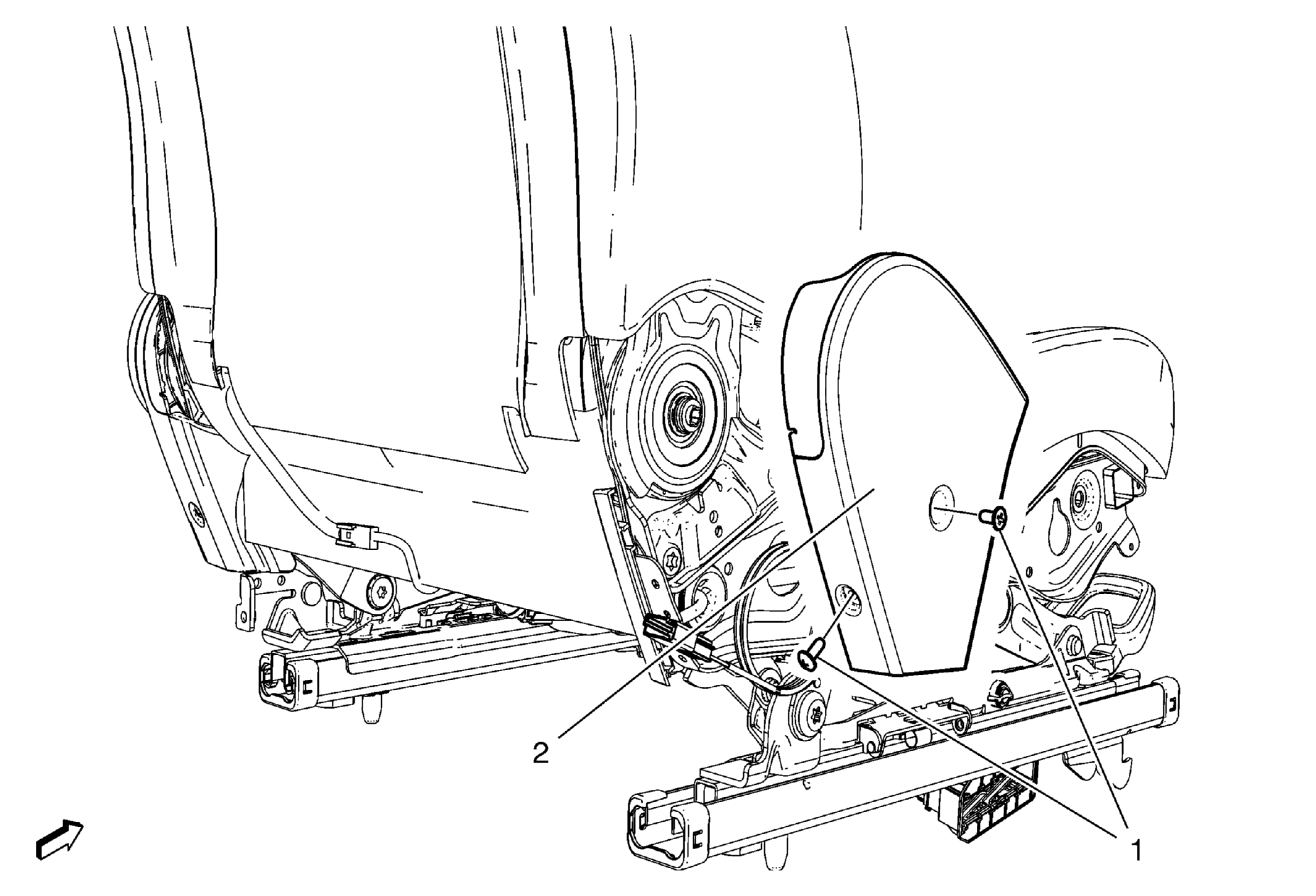

Fig 1: Front Seat Cushion Inner Trim Panel
GM2027448Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Front Seat Cushion Inner Trim Panel Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Front Seat Cushion Inner Trim Panel
