Front Seat Tilt Adjuster Actuator Replacement

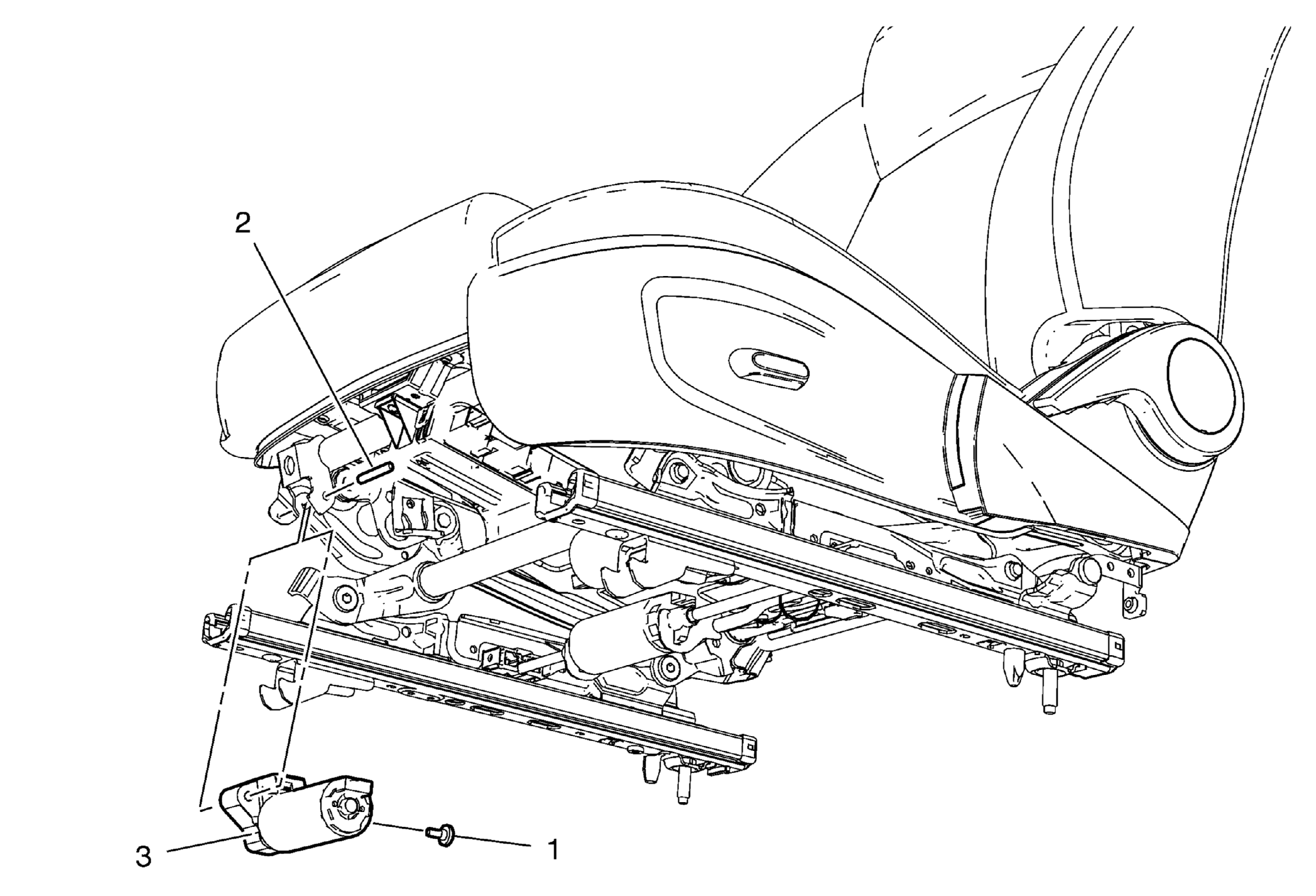

Fig 1: Identifying Front Seat Tilt Adjuster Actuator, Screw And Roll Pin

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Tilt Actuator Screw CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Roll Pin Procedure  Use a hammer and small round tool to tap the roll pin out.
3	Front Seat Tilt Adjuster Actuator Procedure  Disconnect electrical connector.
