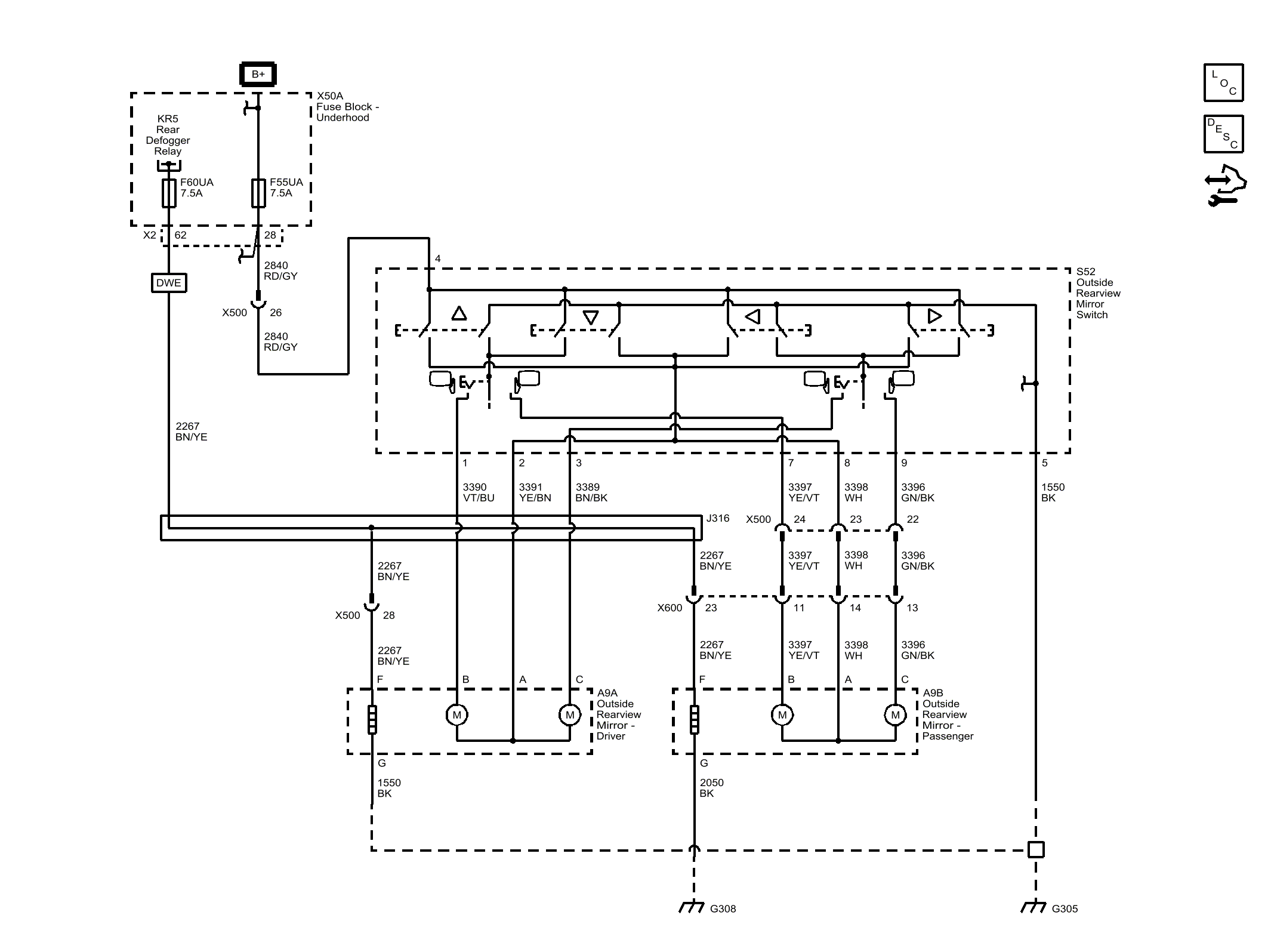

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Mirror System >> Schematic Wiring Diagrams >> Outside Rearview Mirror Wiring Schematics >> Outside Rearview Mirror
