Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic Wiring Diagrams >> Immobilizer Wiring Schematics >> Immobilizer

Immobilizer Wiring Schematics: Immobilizer

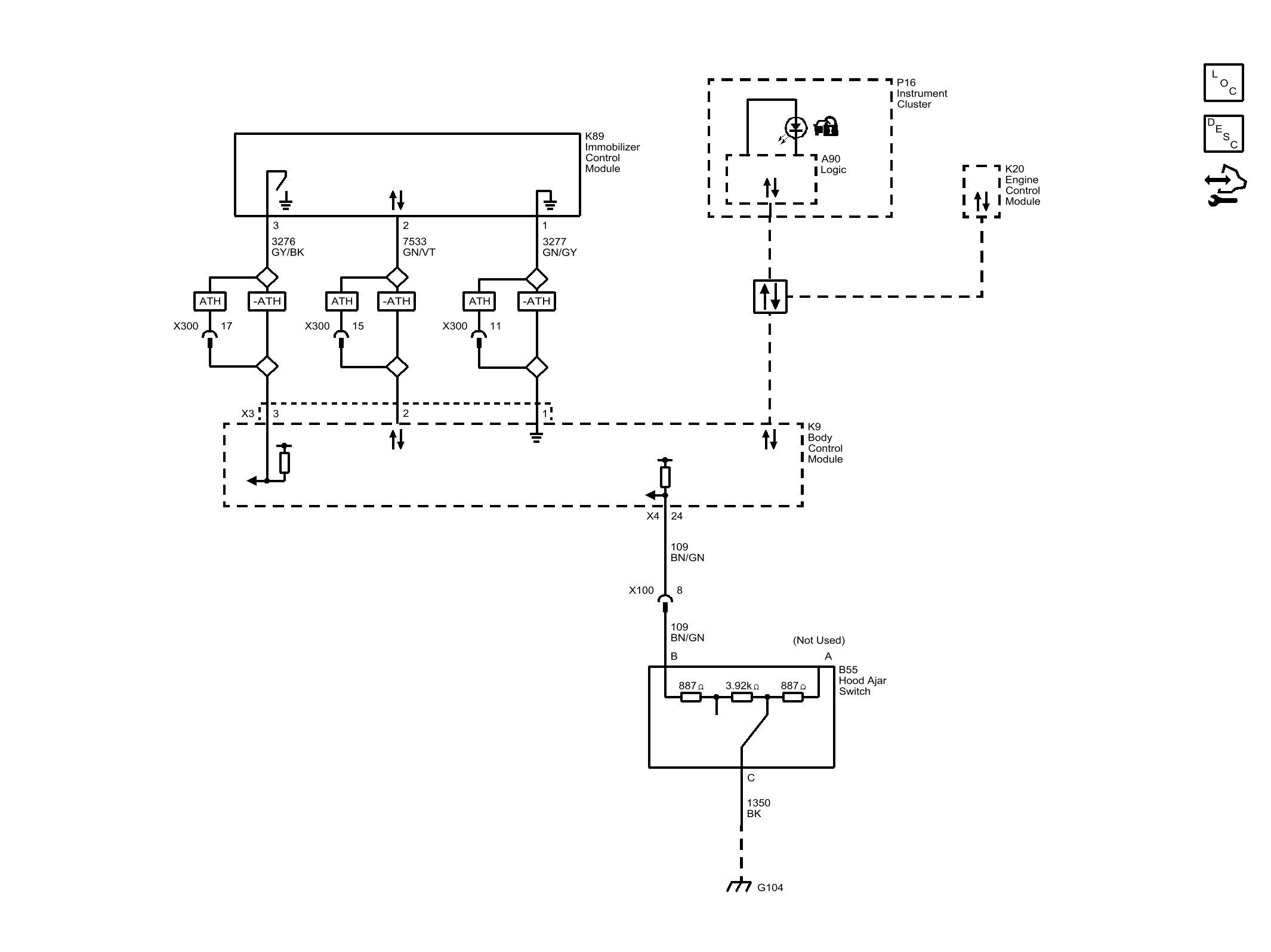

Fig 1: Immobilizer

GM3814572

Courtesy of GENERAL MOTORS COMPANY
