Underbody Front Air Deflector Replacement - Right Side

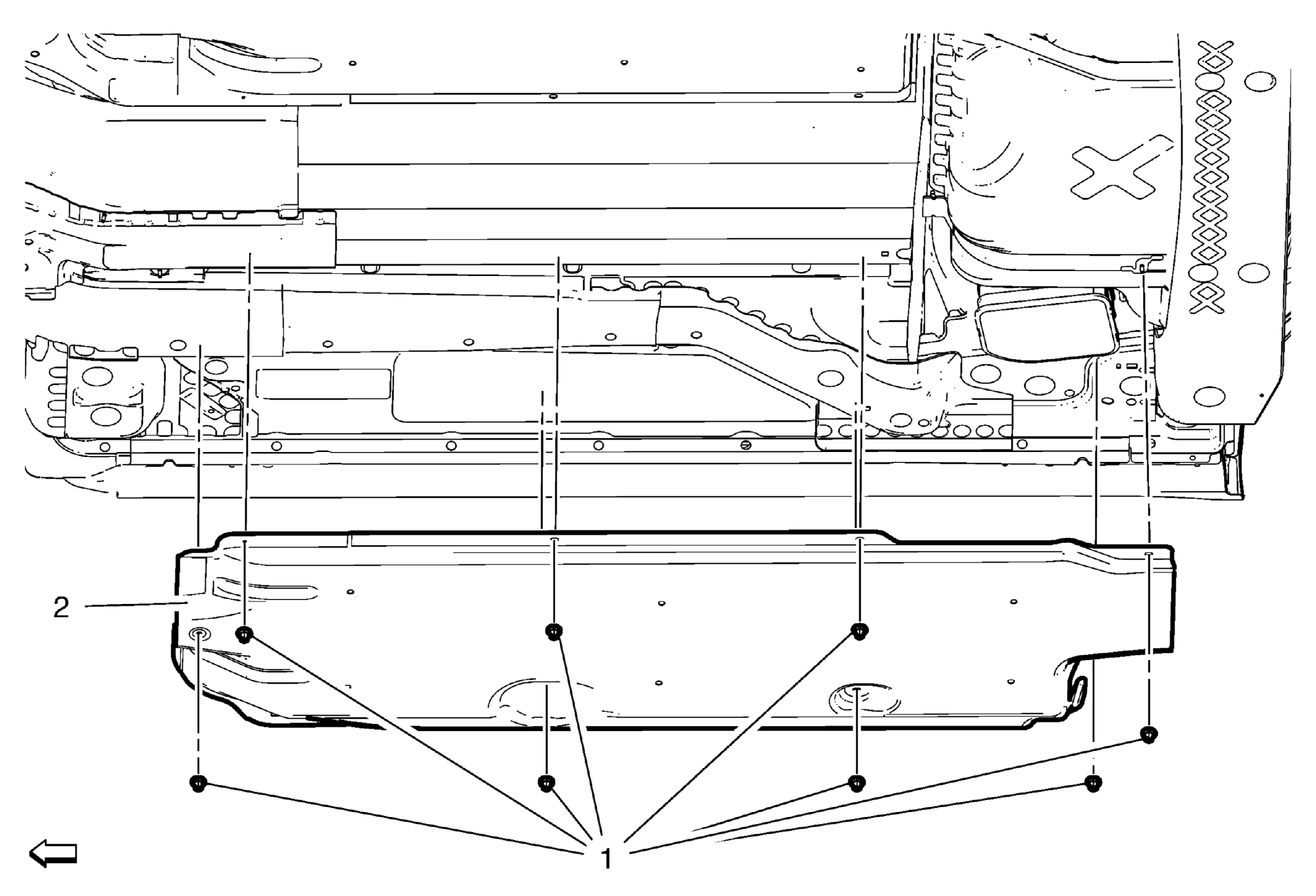

Fig 1: Underbody Front Air Deflector - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Underbody Front Air Deflector Retainer (Qty: 8)
2	Underbody Front Air Deflector - Right Side
