Underbody Front Air Deflector Replacement - Left Side

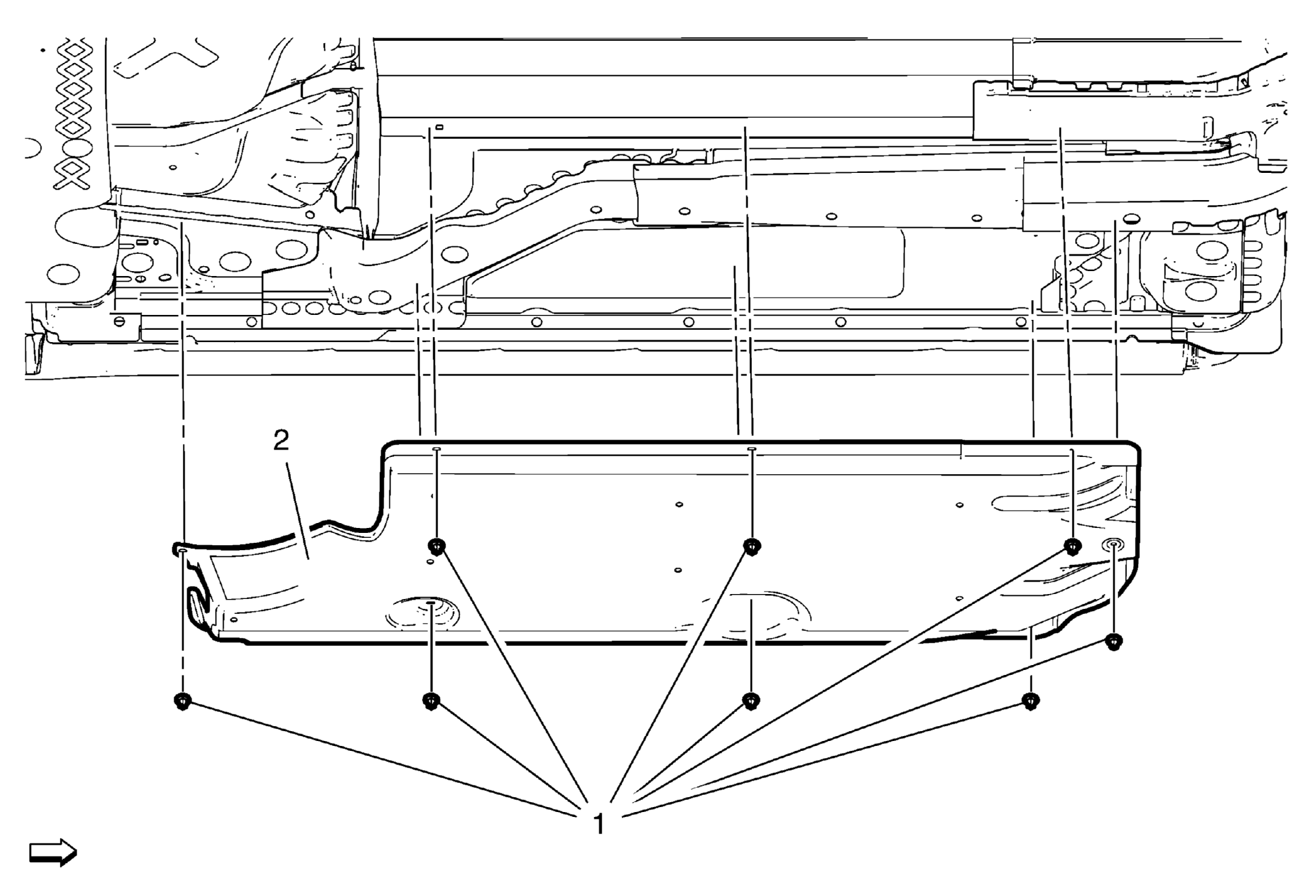

Fig 1: Underbody Front Air Deflector And Retainers - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Underbody Front Air Deflector Retainer (Qty: 8)
2	Underbody Front Air Deflector - Left Side
