Front Tire Front Air Deflector Replacement

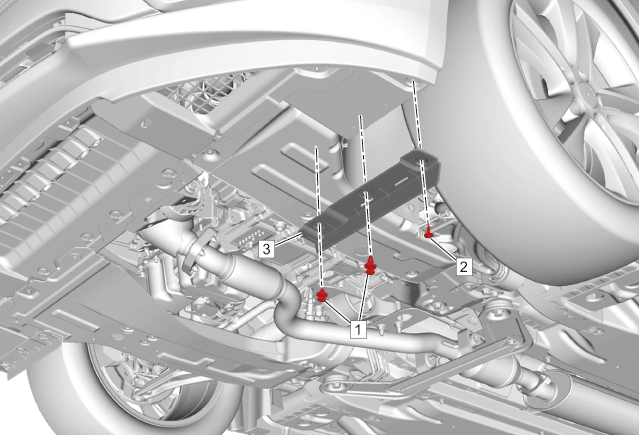

Fig 1: Front Tire Front Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Front Tire Front Air Deflector Retainer [2x]
2	Rear Bumper Fascia Outer Retainer Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Front Tire Front Air Deflector
