Removal Procedure

Remove the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement .
Mark installation position of insulator (2) at frame (1).

Fig 1: View Of Frame And Insulator
Courtesy of GENERAL MOTORS COMPANY

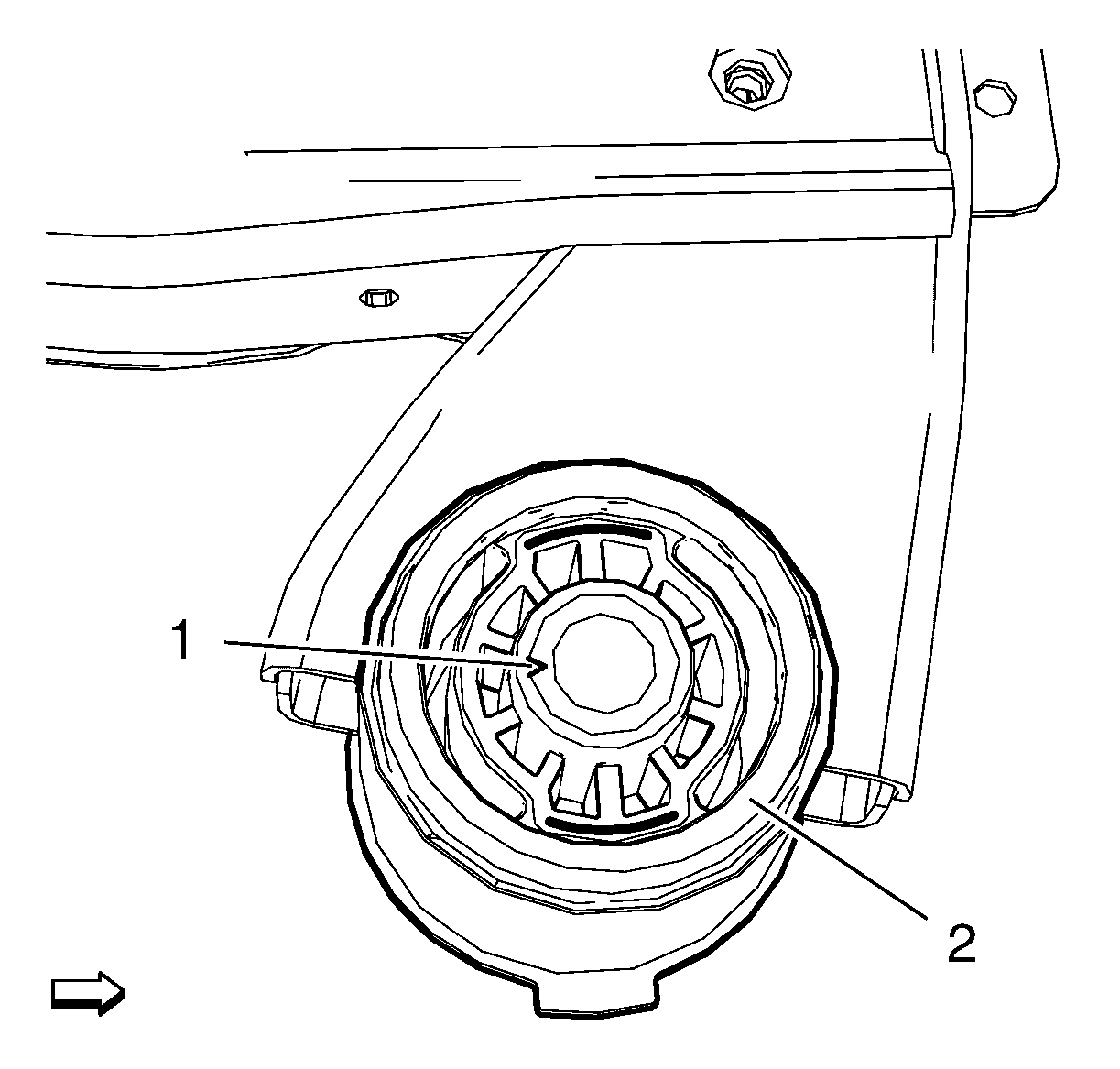

Cut out frame insulator core (1) from frame insulator (2).

Fig 2: Identifying Frame Insulator And Core
Courtesy of GENERAL MOTORS COMPANY

NOTE: Drilling holes into the insulator rubber to ease removal of the core.

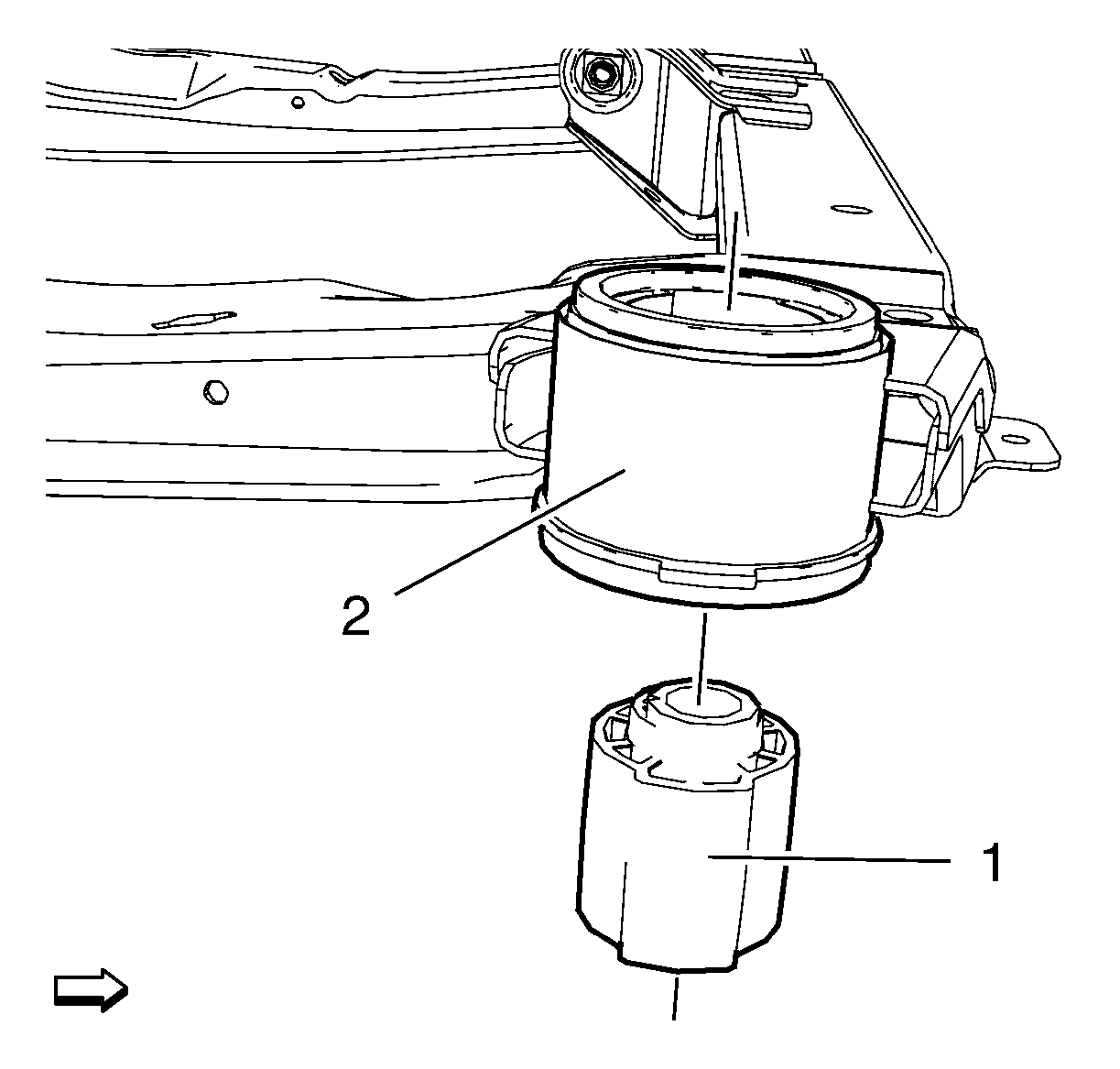

Remove frame insulator core (1) from outer frame insulator (2).

Fig 3: View Of Frame Insulator And Core
Courtesy of GENERAL MOTORS COMPANY

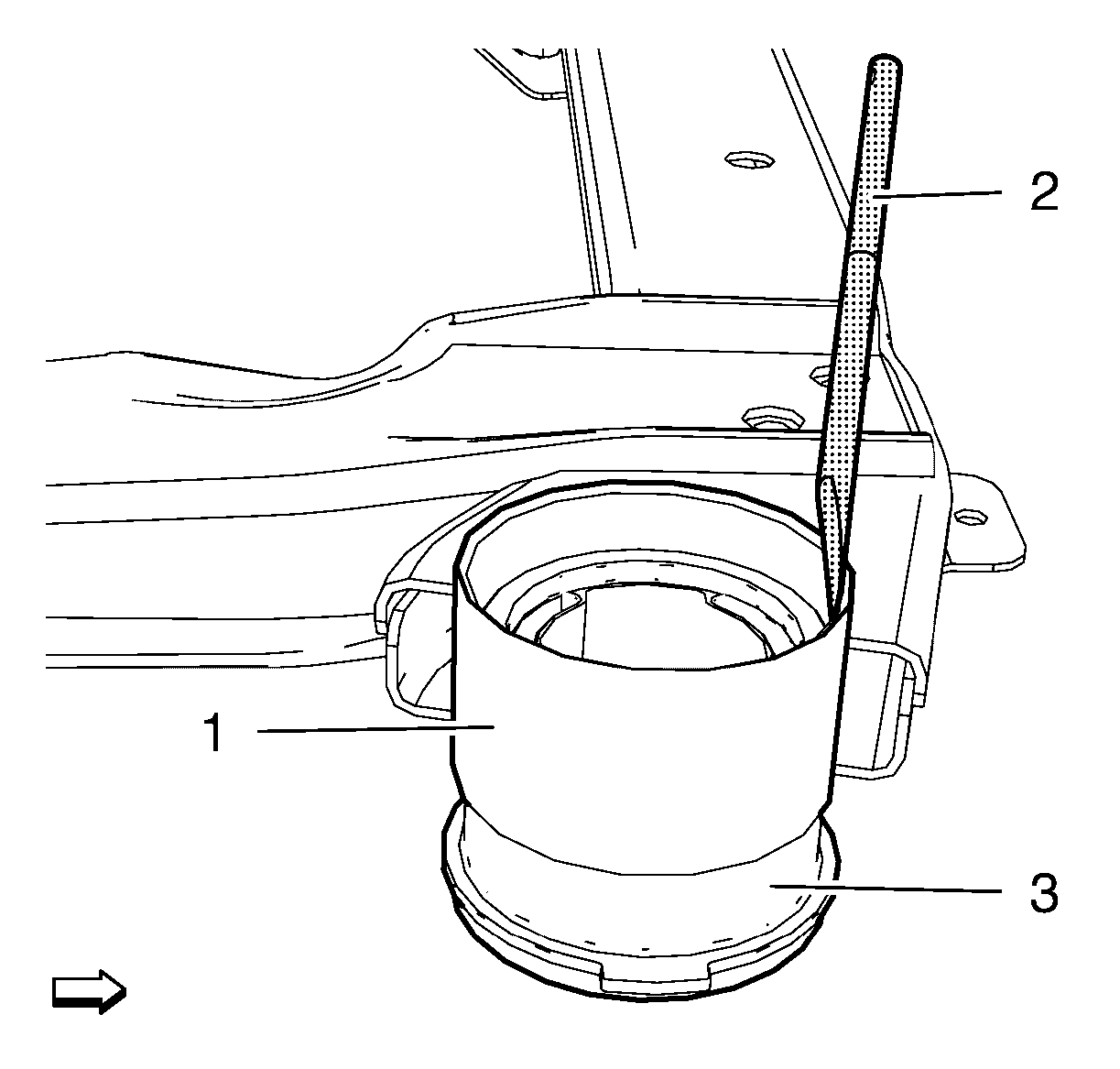

Remove the frame insulator (3) from drivetrain and front suspension frame (1) using a chisel (2) or equivalent.

Fig 4: View Of Front Suspension Frame, Insulator And Chisel
