Installation Procedure

  1. Install the following components on the drivetrain and front suspension frame:

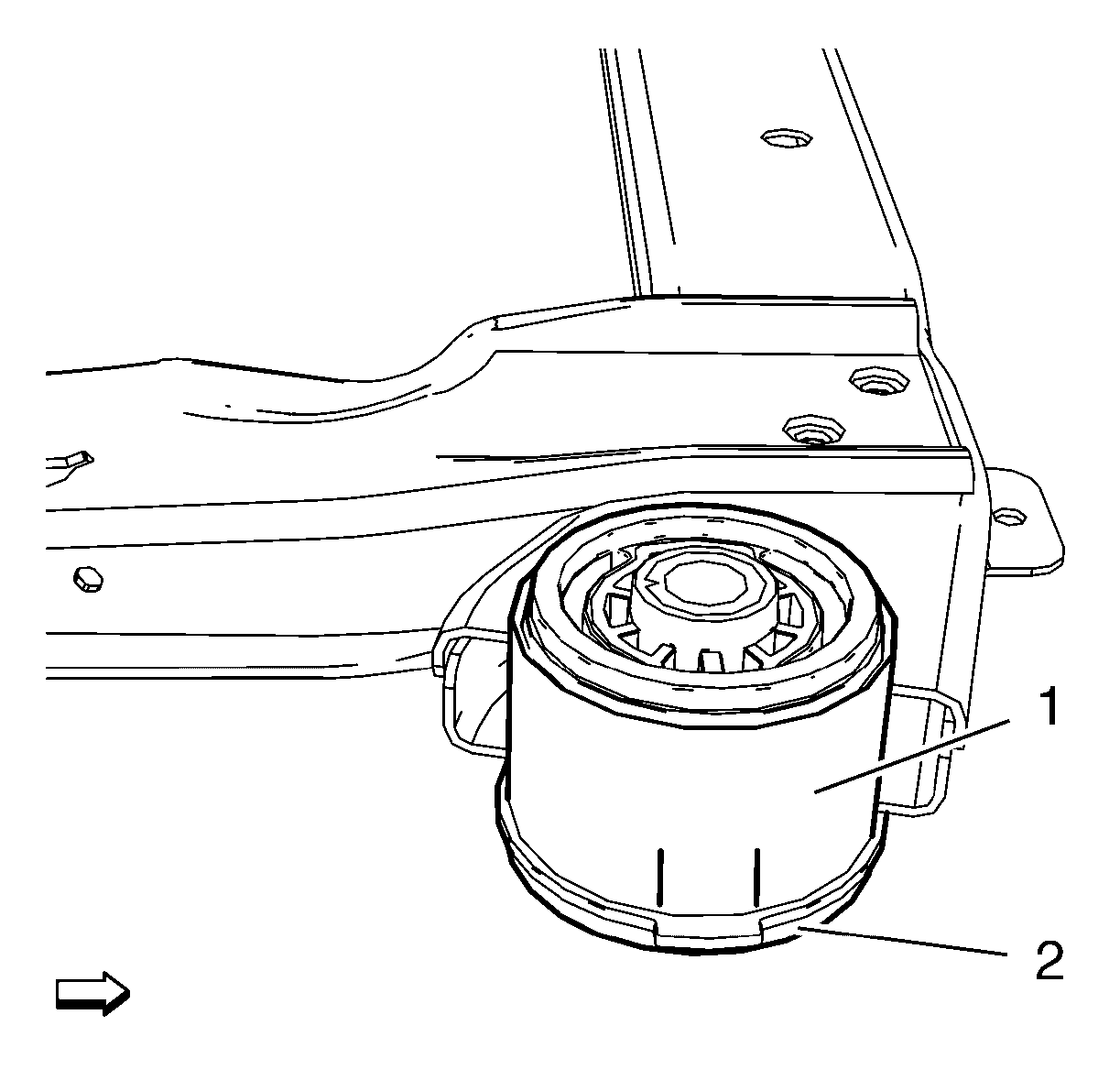

    Fig 1: View Of Frame And Insulator
    GM2190526Courtesy of GENERAL MOTORS COMPANY
    • CH-906-14  Adapter.
    • CH-906-42  Adapter.
    • CH-50342  Threaded Rod.
    • Align the insulator tab with the alignment marks (1) on the frame.
      NOTE: Check marking of frame insulator.
  2. Carefully install the frame insulator in to the front suspension frame.
  3. Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement .
