Sunshade Replacement

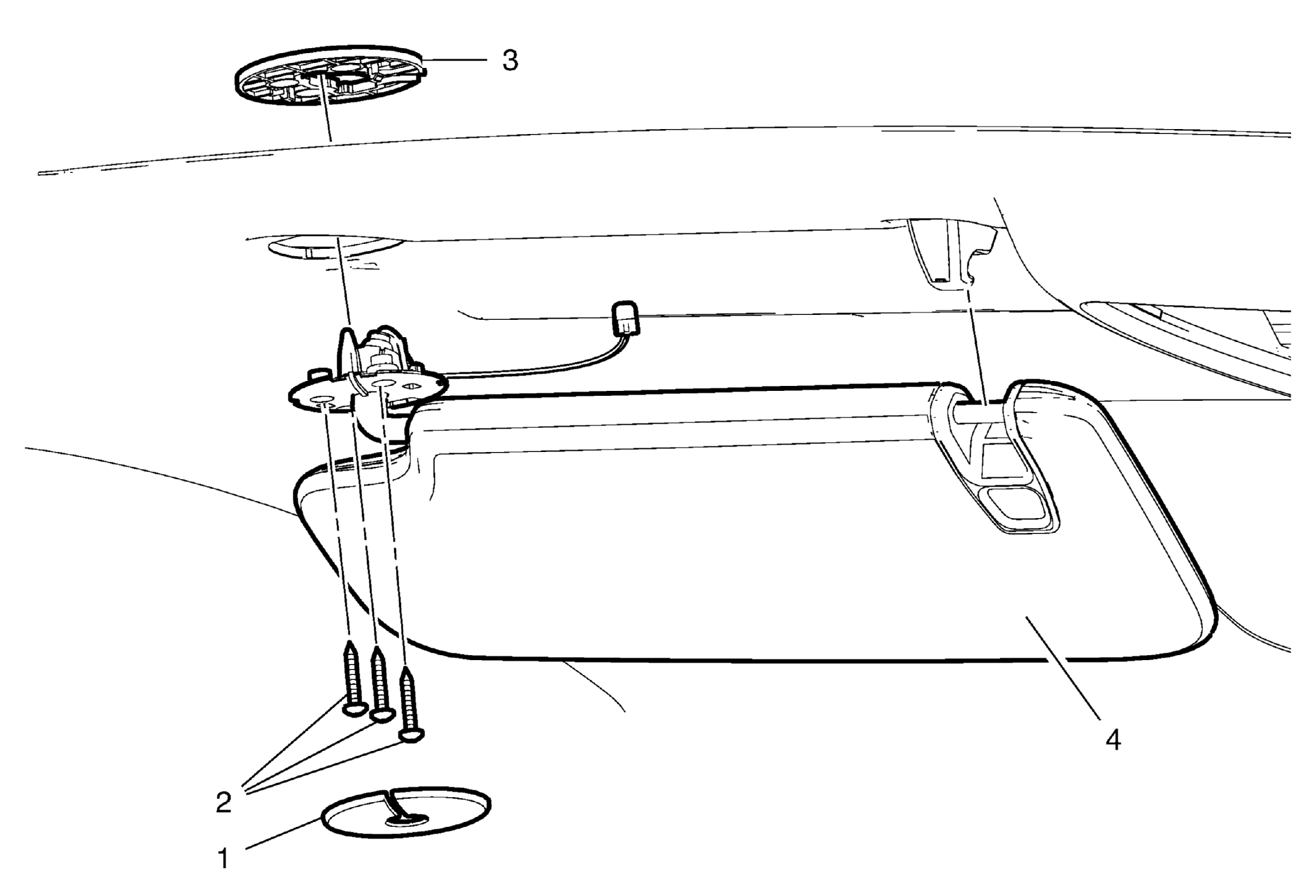

Fig 1: Sunshade Components & Fasteners
GM2372578Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Lower the front of the headliner to access the sunshade electrical connector, if necessary. Refer to Headlining Trim Panel Replacement (with Sunroof) and Headlining Trim Panel Replacement (without Sunroof) .
1 Sunshade Support Bolt Cover
2 Sunshade Fastener (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
3 Sunshade Retainer
4 Sunshade

Procedure

  1. Disconnect the electrical connector.
  2. Unclip the sunshade retainer from the headliner and sunshade.
