Roof Rail Front Stowage Compartment Replacement

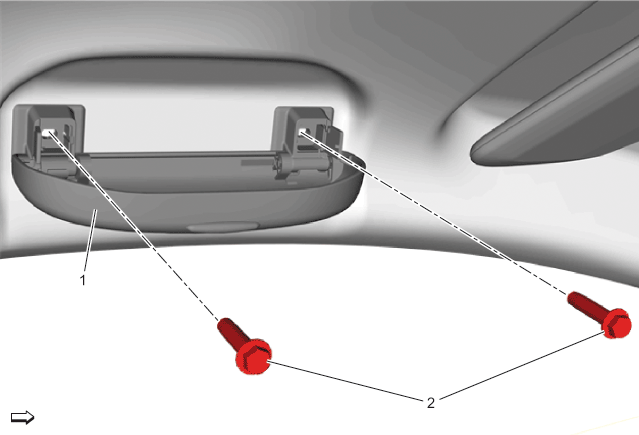

Fig 1: Roof Rail Front Stowage Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Rail Front Stowage Compartment Fastener [2x] CAUTION: Refer to Fastener Caution Procedure Fold the roof rail front stowage compartment downward and hold. Use a small flat bladed tool to open the roof rail stowage compartment covers to access the screws. Tighten 6 N.m (53 lb in)
2	Roof Rail Front Stowage Compartment

Callout

Component Name

Roof Rail Front Stowage Compartment Fastener [2x]

CAUTION: Refer to Fastener Caution

Procedure

Fold the roof rail front stowage compartment downward and hold.
Use a small flat bladed tool to open the roof rail stowage compartment covers to access the screws.

Tighten
6 N.m (53 lb in)

Roof Rail Front Stowage Compartment
