Assist Handle Replacement

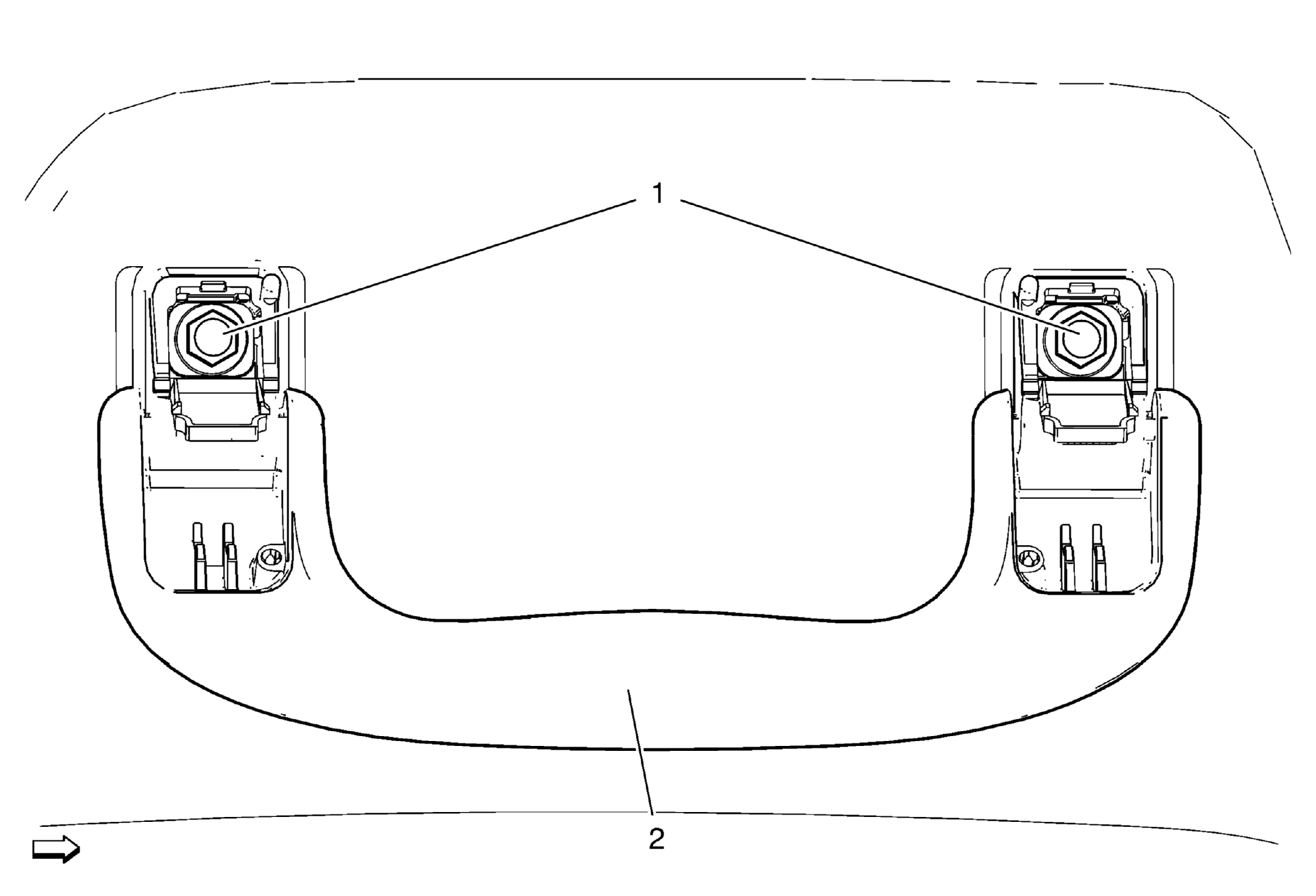

Fig 1: Identifying Assist Handle & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Assist Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Fold the assist handle downward and hold. Use a small flat-bladed tool to open the assist handle covers to access the screws. Tighten 6 N.m (53 lb in)
2	Assist Handle Assembly

Callout

Component Name

Assist Handle Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure

Fold the assist handle downward and hold.
Use a small flat-bladed tool to open the assist handle covers to access the screws.

Tighten
6 N.m (53 lb in)

Assist Handle Assembly
