Front Floor Console Rear Cover Replacement

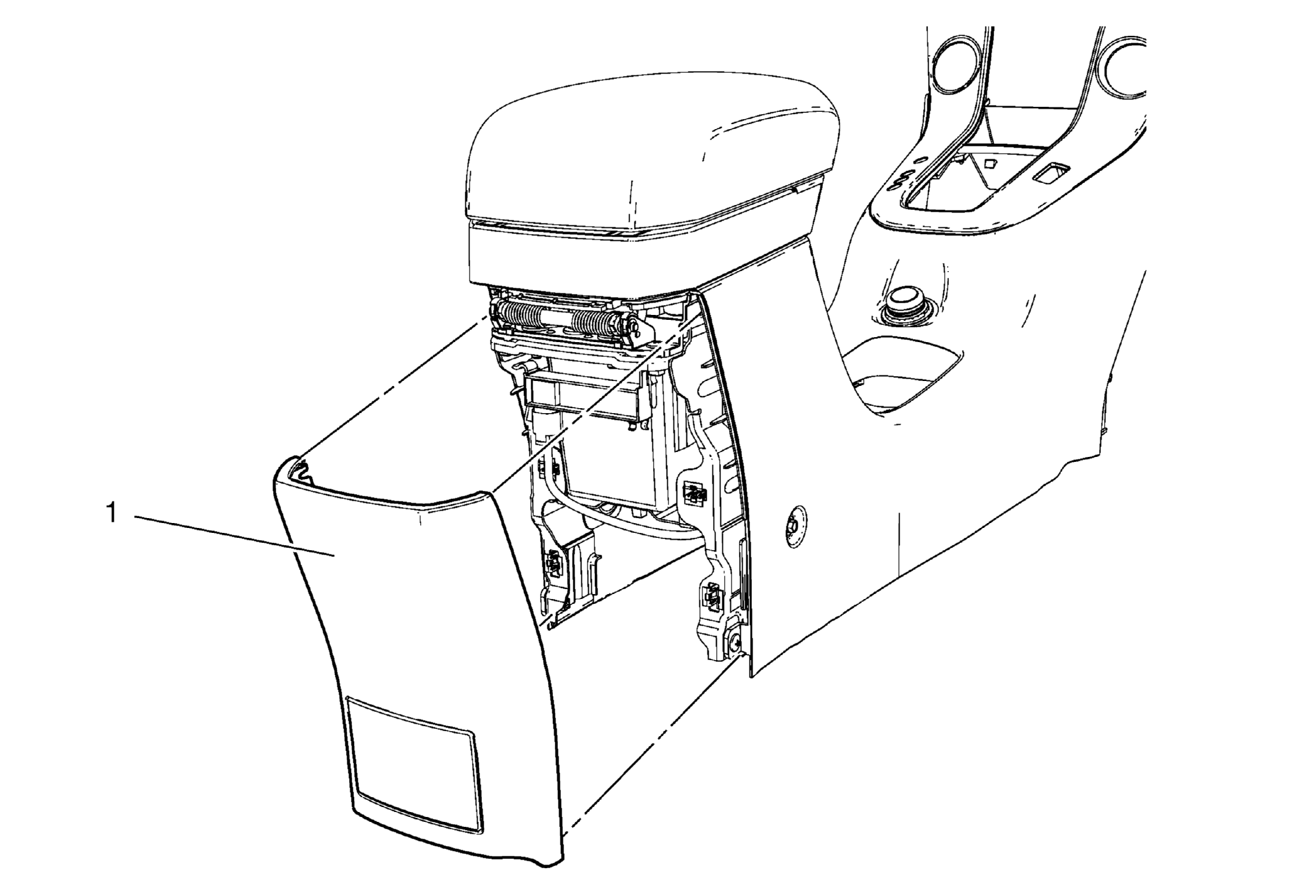

Fig 1: View Of Front Floor Console Rear Cover Assembly
GM2027057Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Rear Cover Assembly

Procedure

  1. Grasp the cover assembly and pull rearward disengaging the retainer clips securing the cover to the floor console.
  2. Disconnect the electrical connections.
  3. When replacing the front floor console rear cover assembly, transfer all necessary components.
