Removal Procedure

  1. Remove the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
    WARNING: Wear safety glasses in order to avoid eye damage.
  2. Disengage the front floor panel carpet retainer (1) on the rear side of the front floor panel carpet.

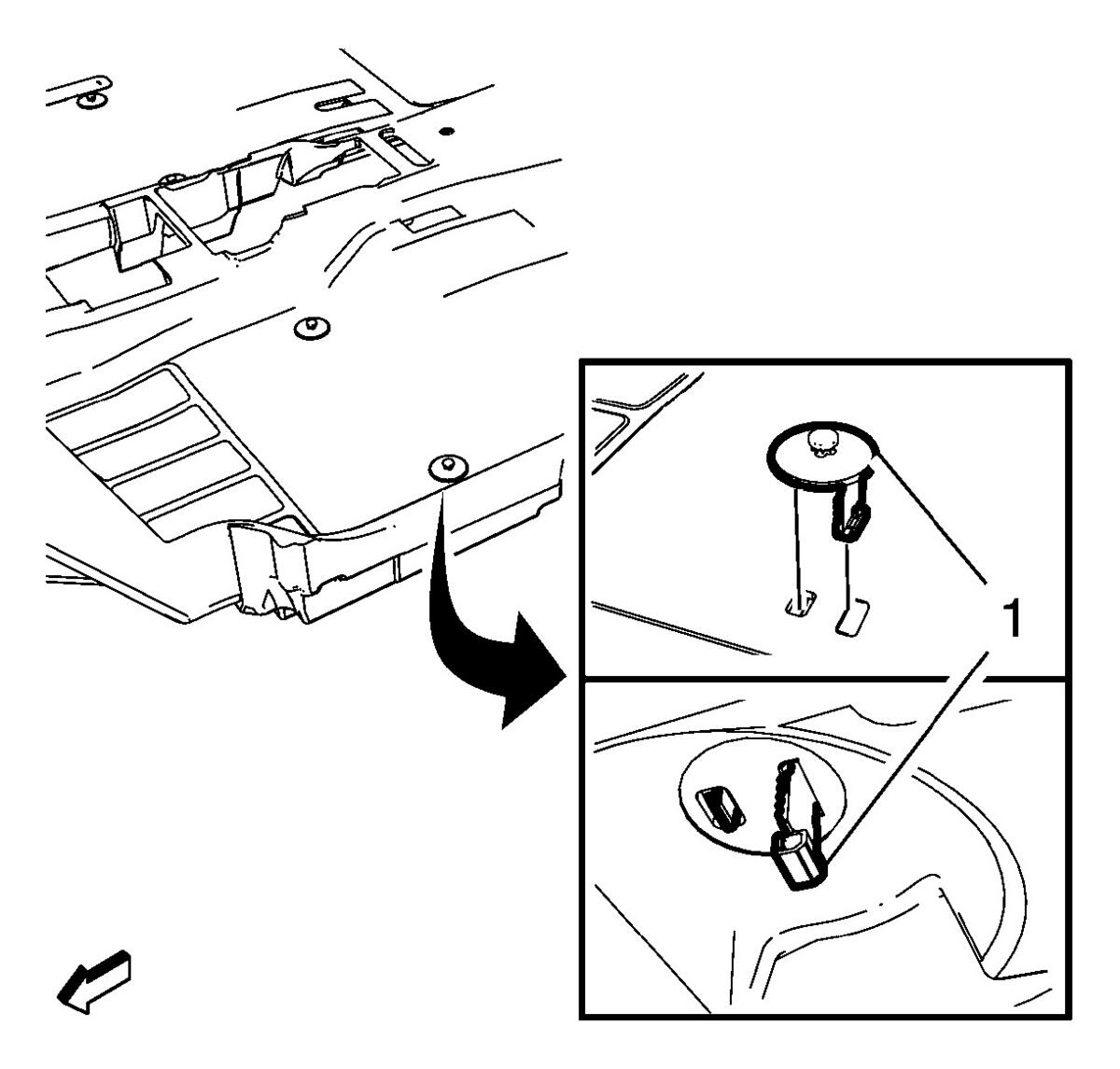

    Fig 1: Floor Panel Carpet Retainer
    GM2631349Courtesy of GENERAL MOTORS COMPANY
  3. Remove the front floor panel carpet retainer (1) upwards.
