Removal Procedure

  1. From the backside of the floor mat, cut four lines (1) through the plastic at the shown locations using a pair of cutters.
    WARNING: Wear safety glasses in order to avoid eye damage.

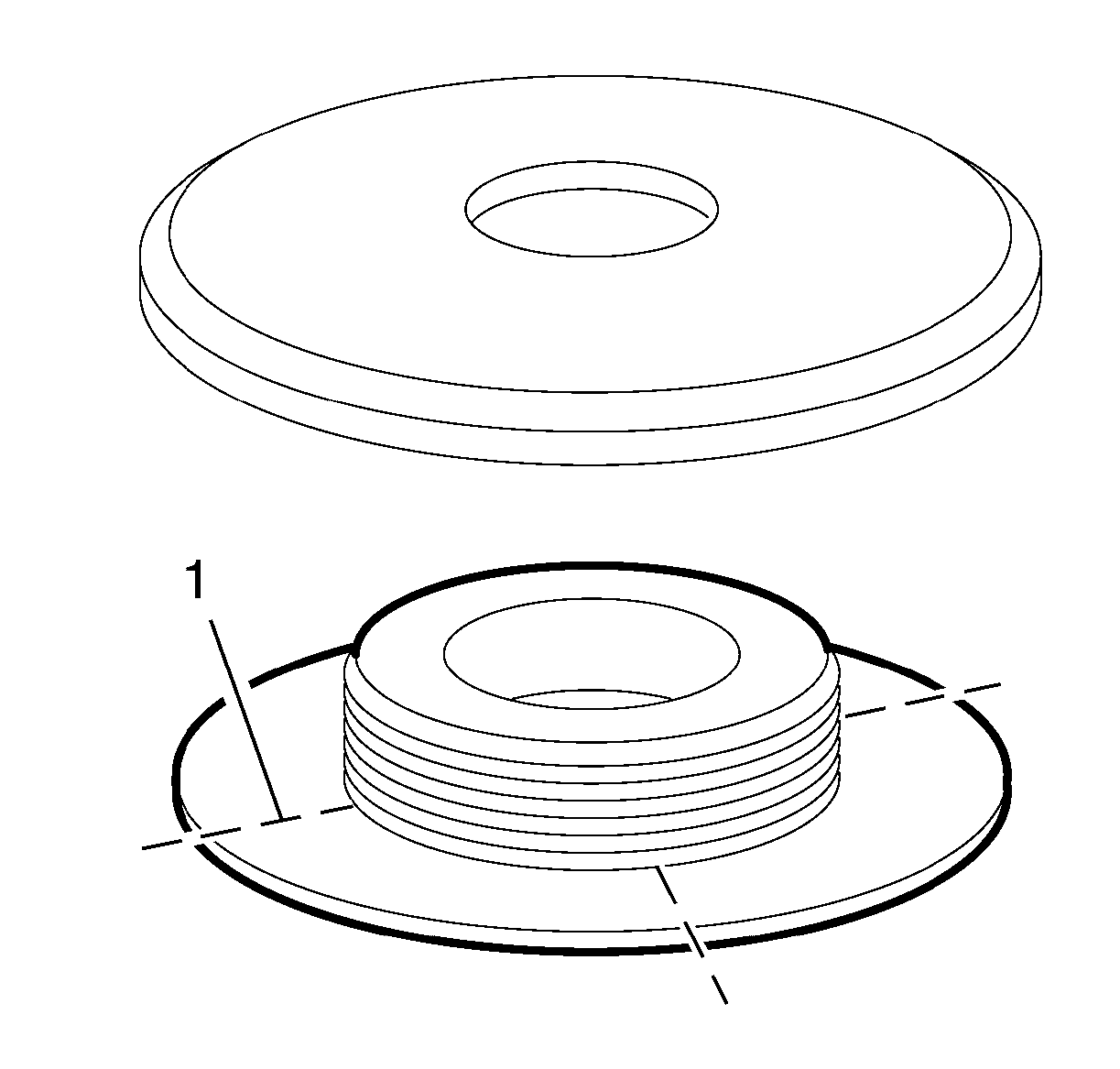

    Fig 1: Cutting Carpet Retainer
    GM2631343Courtesy of GENERAL MOTORS COMPANY
  2. Using suitable pliers, break off each piece and push the remaining piece through the mat retainer hole.
