Rocker Panel Decal Replacement

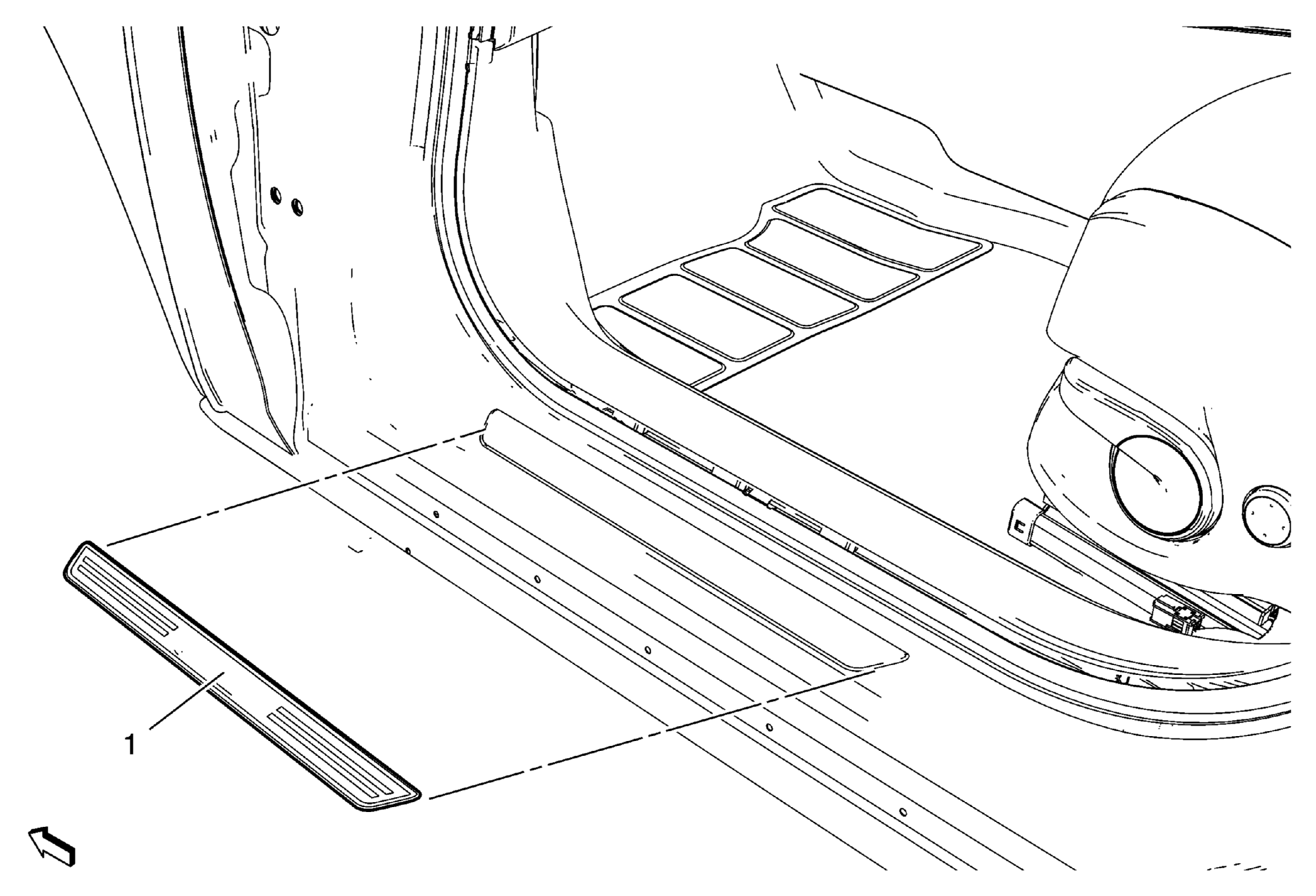

Fig 1: Rocker Panel Decal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rocker Panel Decal CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a Heat Gun or equivalent to remove the old decal. Clean all adhesive from the rocker panel and wipe the surface dry with a clean lint free towel prior to installing the new decal. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion. Using the palm of the hand, wet out the decal to the rocker panel to ensure full adhesion of the emblem is made.

Callout

Component Name

Rocker Panel Decal

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a Heat Gun or equivalent to remove the old decal. Clean all adhesive from the rocker panel and wipe the surface dry with a clean lint free towel prior to installing the new decal.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
Using the palm of the hand, wet out the decal to the rocker panel to ensure full adhesion of the emblem is made.
