Front Side Door Window Frame Cover Replacement

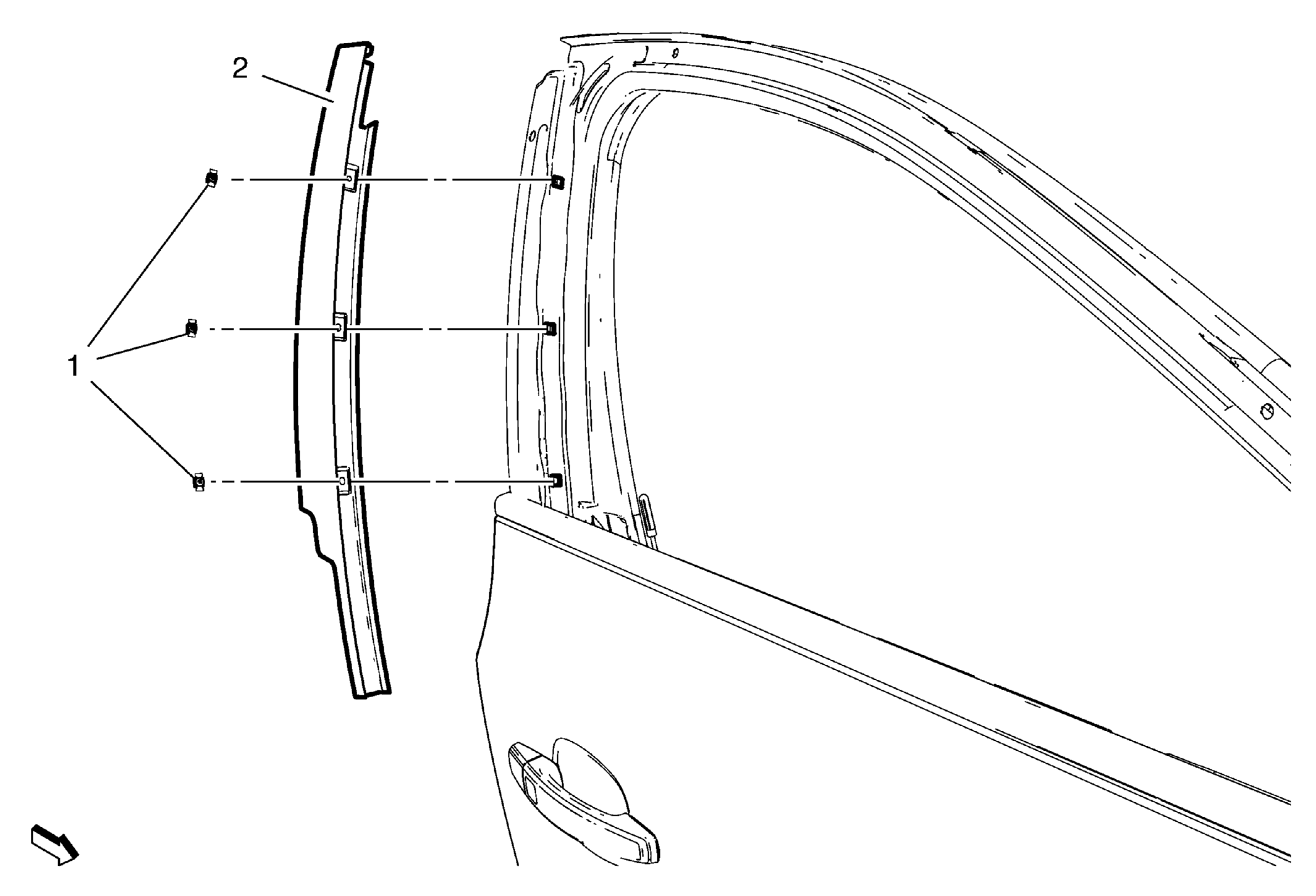

Fig 1: Identifying Front Side Door Window Frame Cover And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door window weatherstrip. Refer to Front Side Door Window Weatherstrip Replacement .
1	Front Side Door Window Frame Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Side Door Window Frame Cover
