Front Lower Grille Replacement

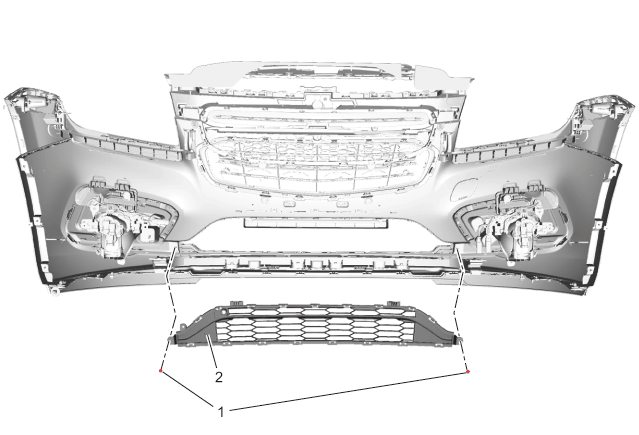

Fig 1: Front Lower Grille
GM3978328Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement
1 Front Lower Grille Fastener [2x]
CAUTION: Refer to Fastener Caution

Tighten
2 N.m (18 lb in)
2 Front Lower Grille
  1. Release the retaining tabs.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
