Front Grille Replacement

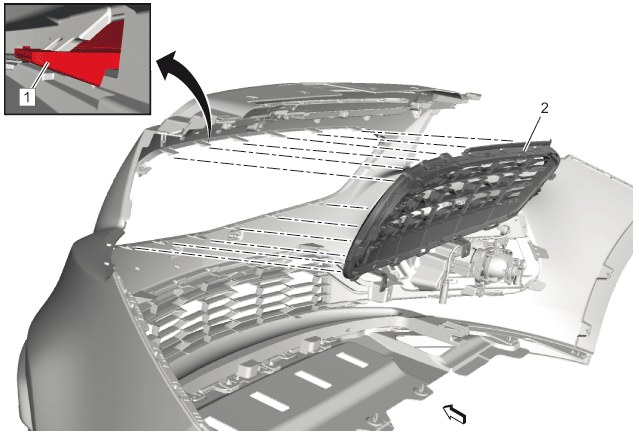

Fig 1: Front Grille
GM3978457Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement
1 Front Grille Retaining Tabs
  1. Release the retaining tabs.
  2. Use a flat bladed plastic tool to remove.
2 Front Grille
