Headlamp Mount Panel Bracket Replacement

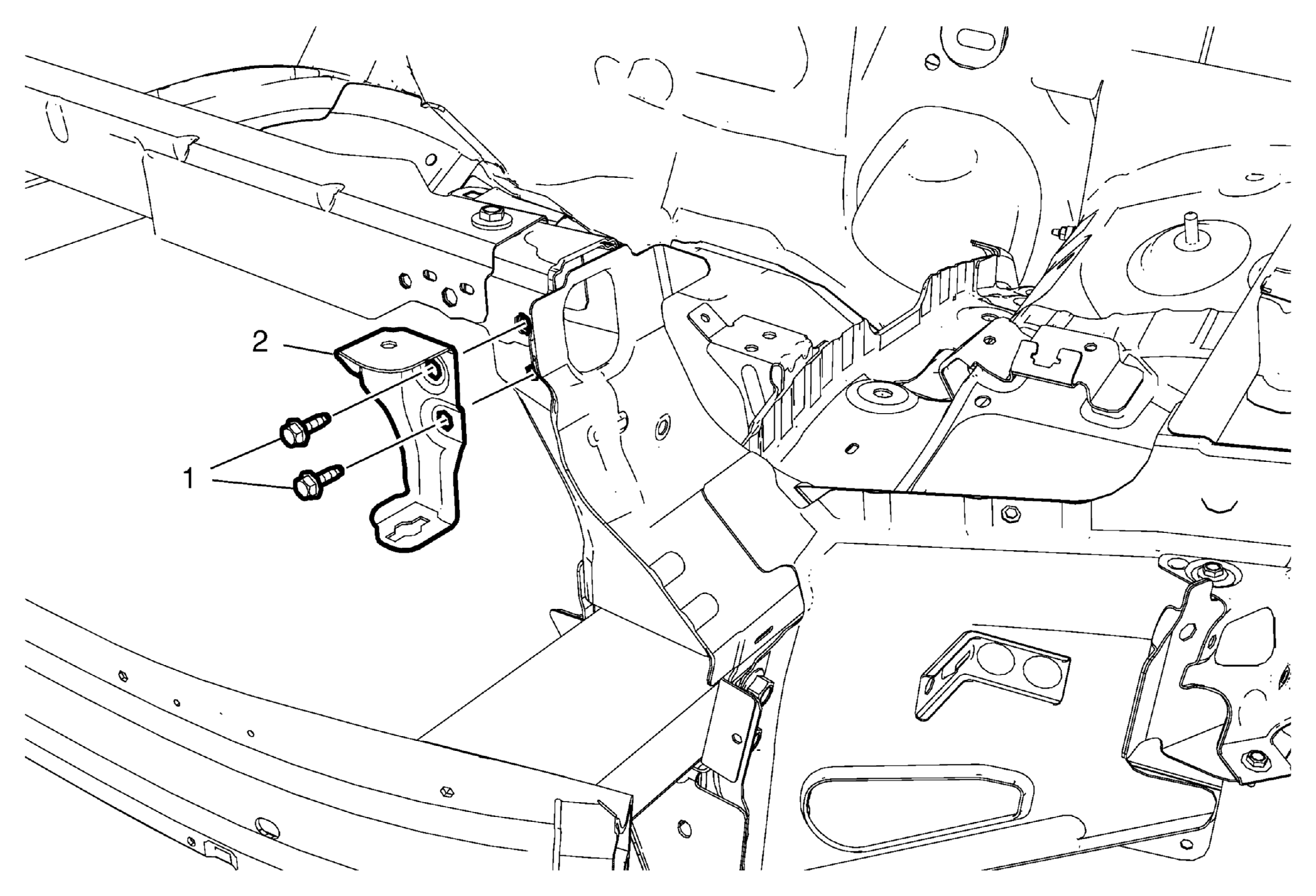

Fig 1: Headlamp Mount Panel Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the headlamp. Refer to Headlamp Replacement .
1	Headlamp Mount Panel Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Headlamp Mount Panel Bracket

Callout

Component Name

Preliminary Procedures

Headlamp Mount Panel Bracket Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Headlamp Mount Panel Bracket
