Fuel Tank Filler Door Replacement

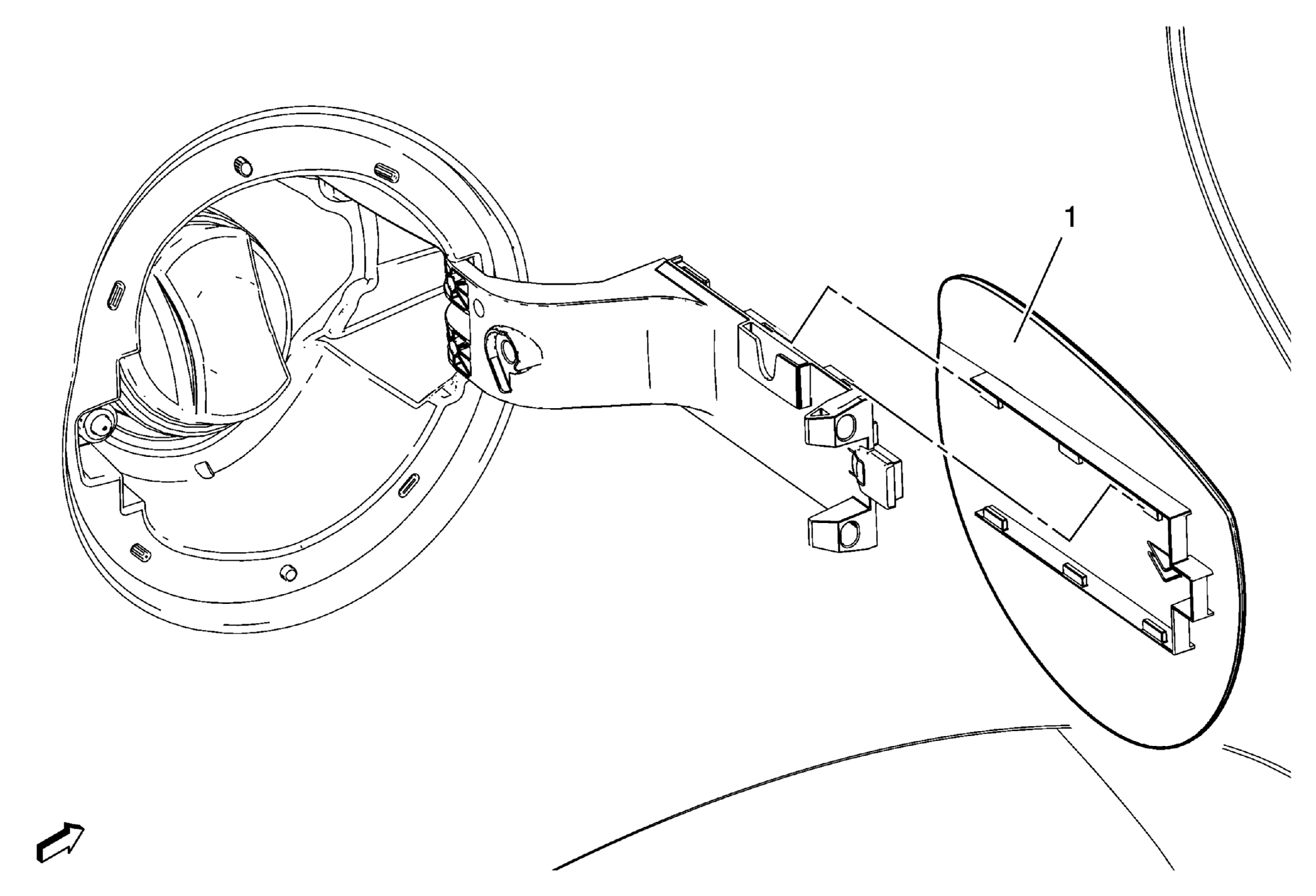

Fig 1: Fuel Tank Filler Door Fuel Tank Filler Door
GM2189699Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fuel Tank Filler Door

Procedure

  1. Open the fuel tank filler door.
  2. Unclip the fuel tank filler door.
