Front Fender Insulator Replacement

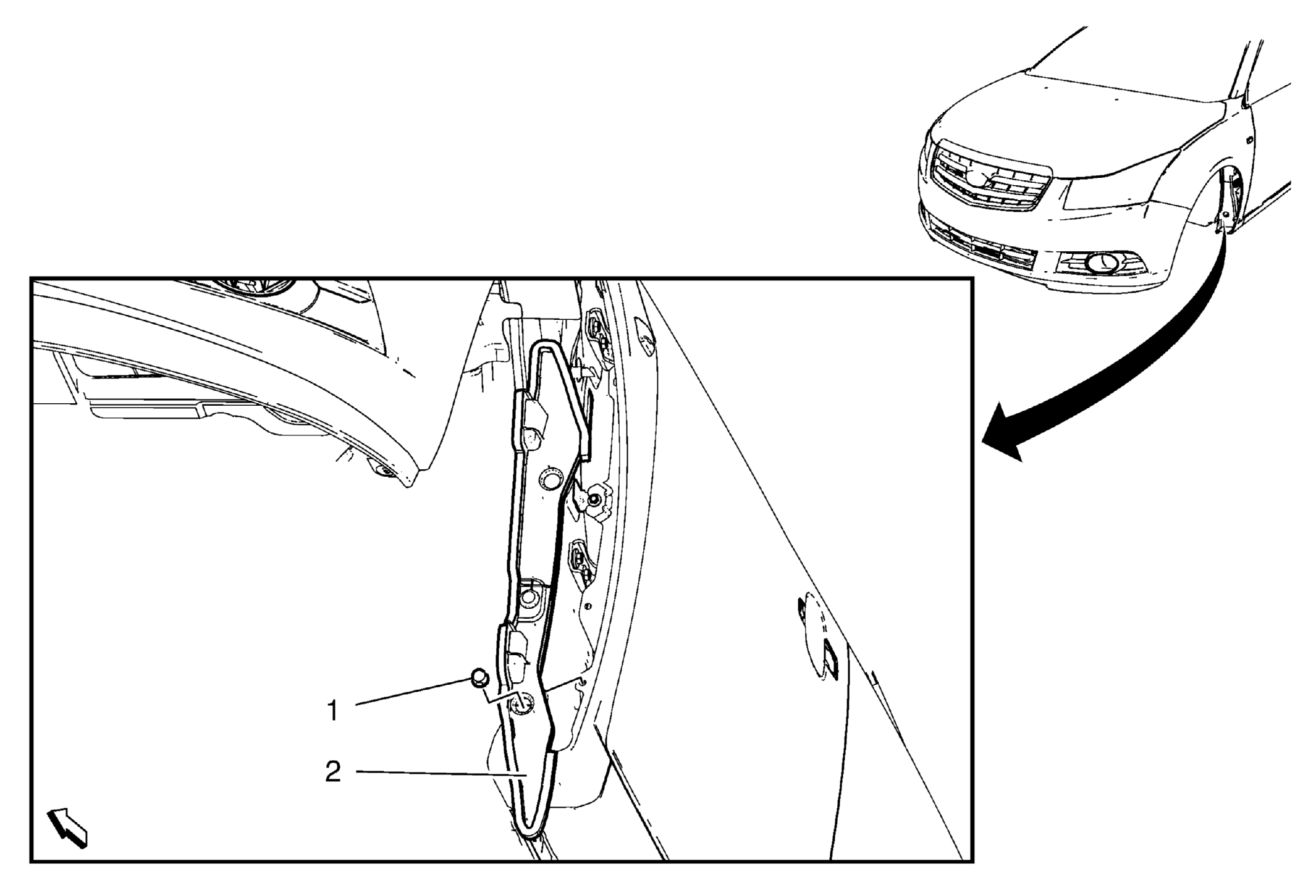

Fig 1: Front Fender Insulator
GM2027063Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1 Front Fender Insulator Retainer
2 Front Fender Insulator
