Front Fender Front Lower Bracket Replacement

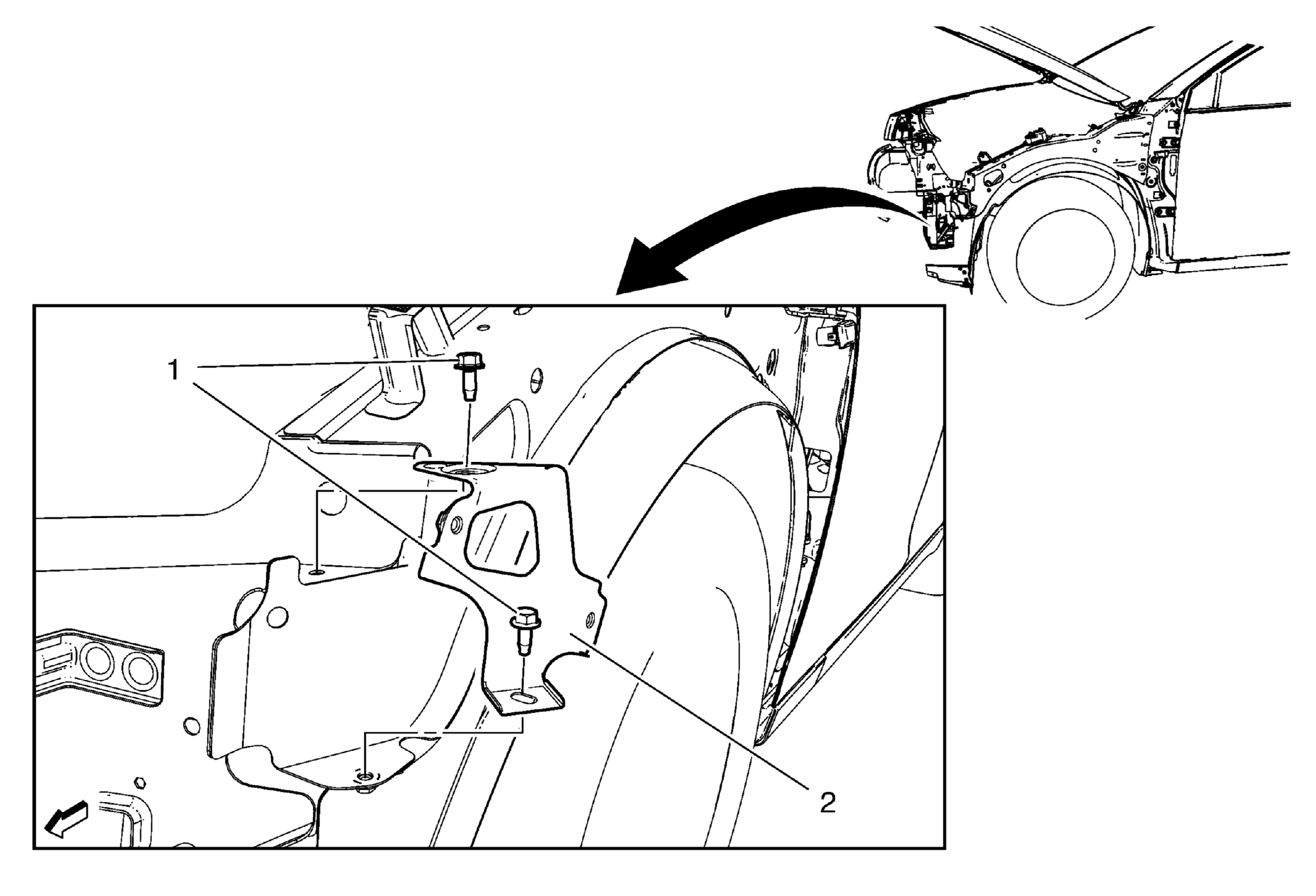

Fig 1: Front Fender Front Lower Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the headlamp. Refer to Headlamp Replacement . Remove the front fender. Refer to Front Fender Replacement .
1	Front Fender Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Front Lower Bracket

Callout

Component Name

Preliminary Procedures

Front Fender Bracket Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Fender Front Lower Bracket
