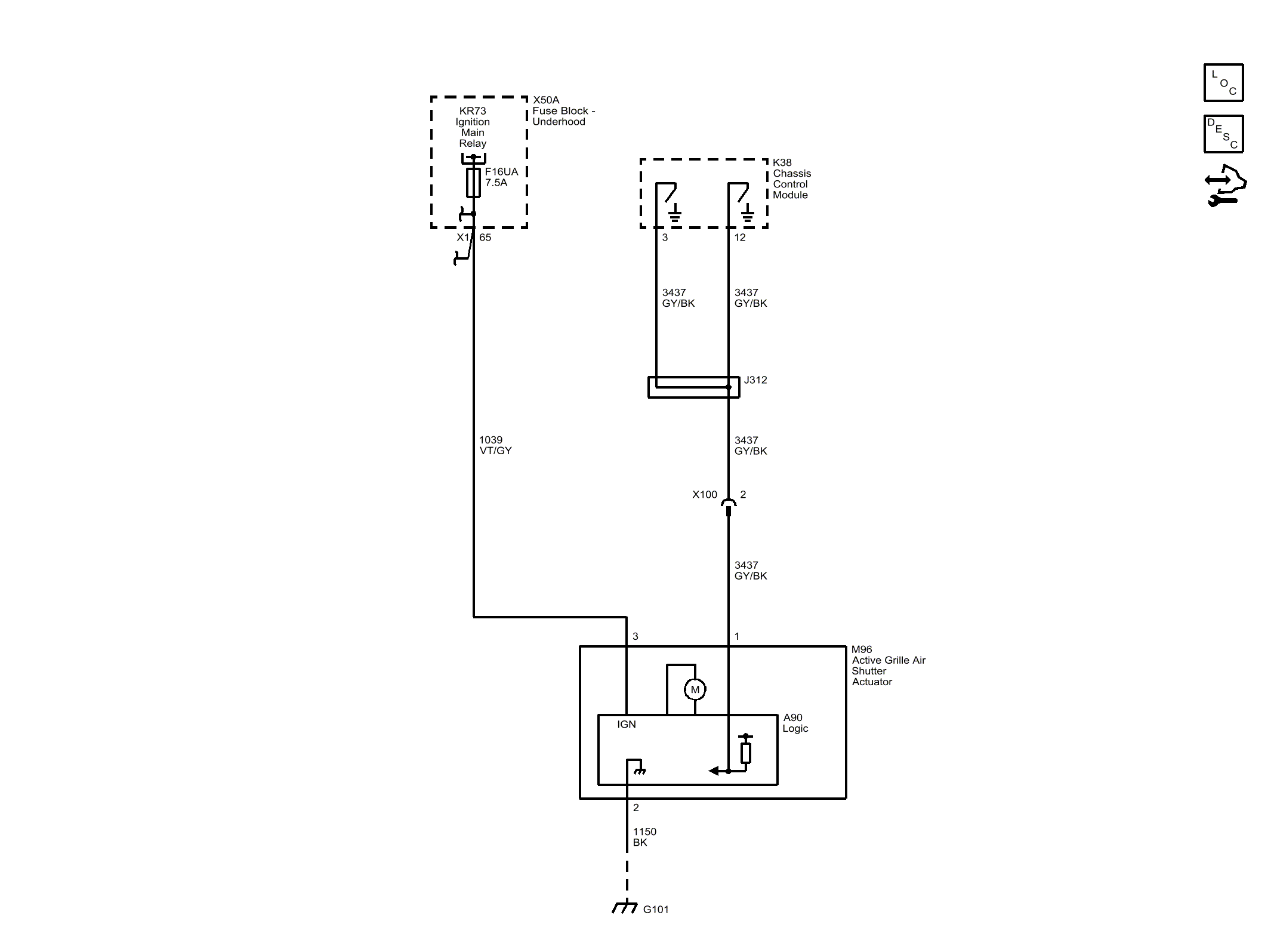

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bumpers And Fascias >> Schematic Wiring Diagrams >> Active Grille Air Shutter Wiring Schematics >> Active Grille Air Shutter (Y8X)
