Rear Bumper Impact Bar Replacement

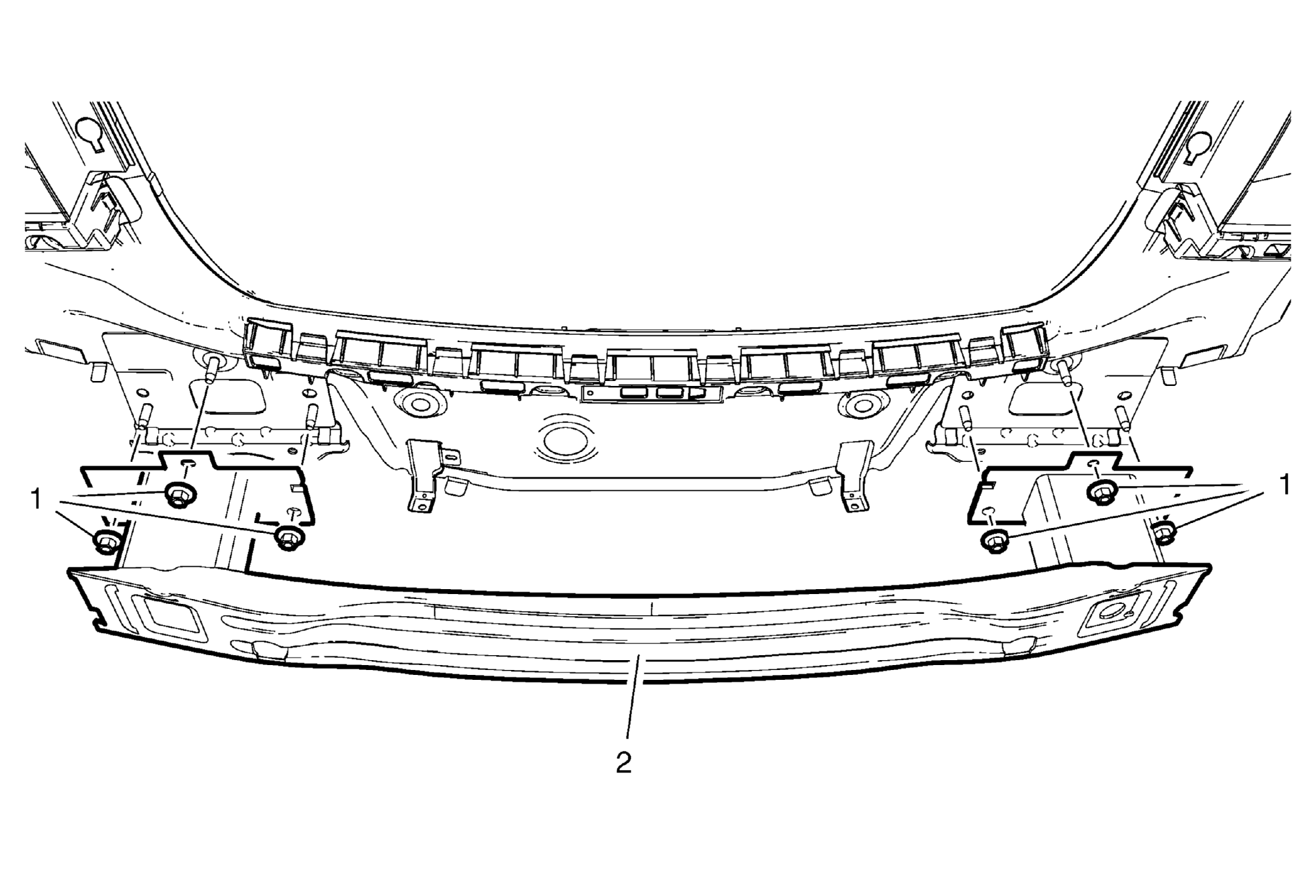

Fig 1: Rear Bumper Impact Bar
GM2027099Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1 Rear Bumper Energy Absorber Nut (Qty: 6)
CAUTION: Refer to Fastener Caution .

Tighten
40 N.m (30 lb ft)
2 Rear Bumper Impact Bar
