Rear Bumper Fascia Inner Guide Replacement

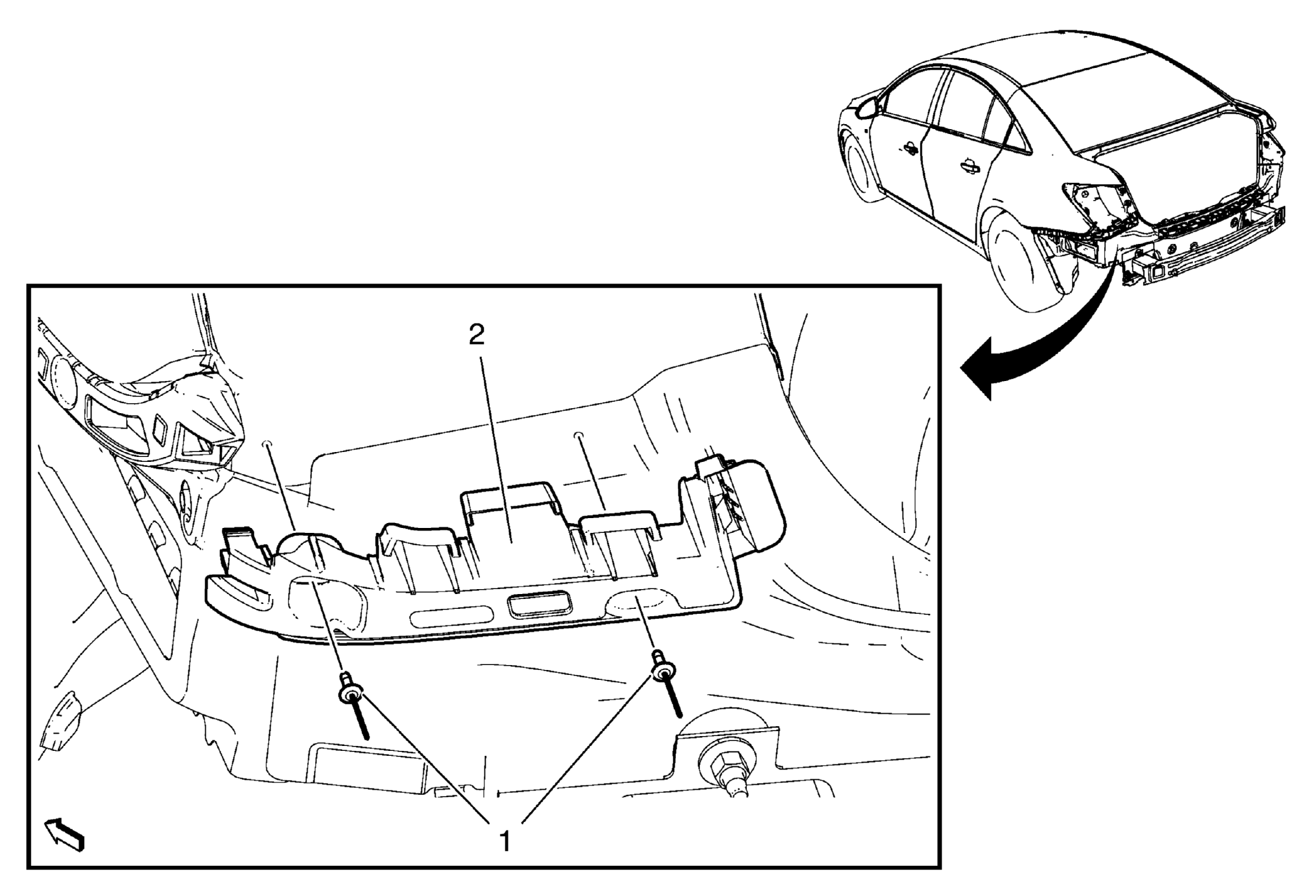

Fig 1: Rear Bumper Fascia Inner Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Fascia Inner Guide Rivet (Qty: 2)
2	Rear Bumper Fascia Inner Guide.
