Rear Bumper Fascia Guide Replacement

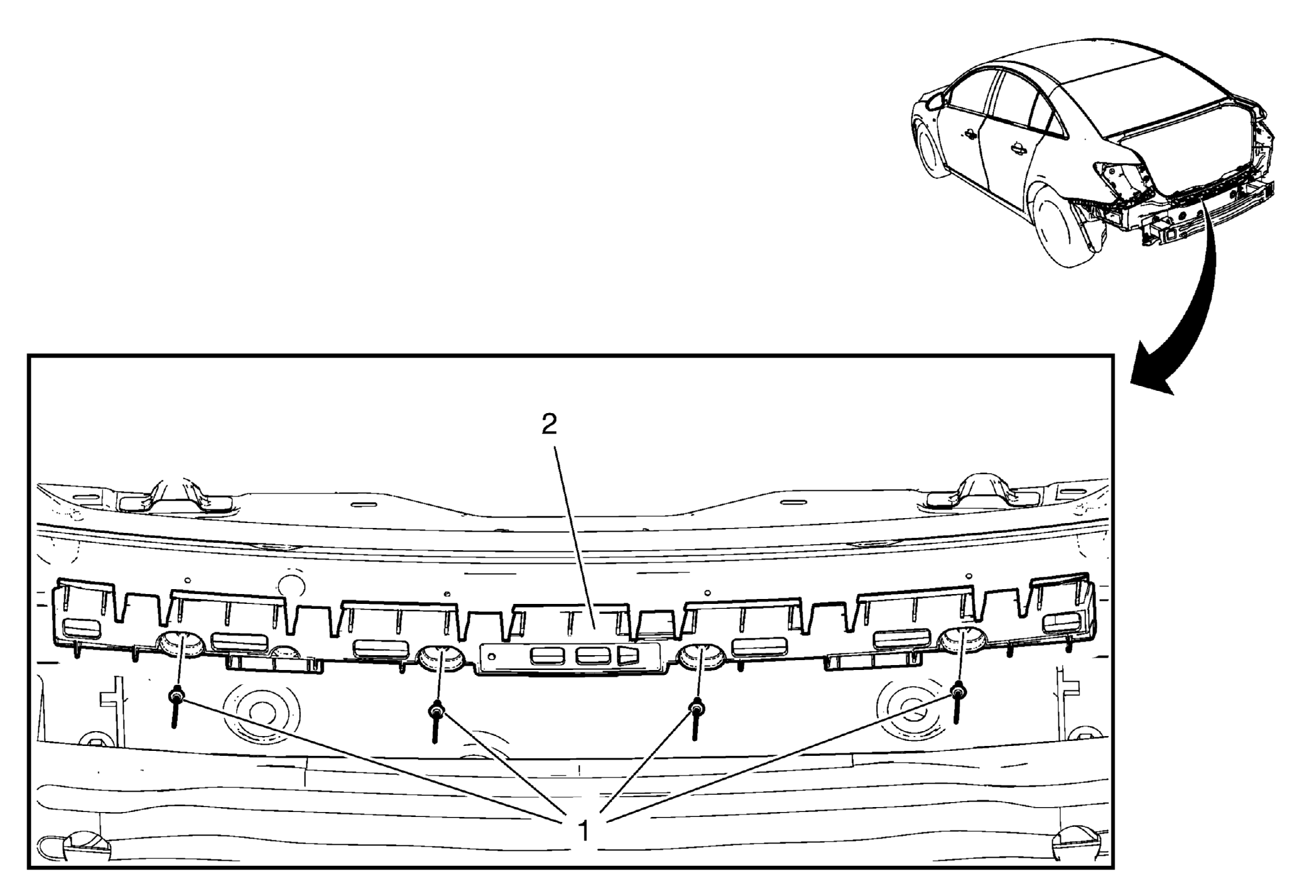

Fig 1: Rear Bumper Fascia Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Fascia Guide Rivet (Qty: 4)
2	Rear Bumper Fascia Guide
