Removal Procedure

Disable the SIR System. Refer to SIR Disabling and Enabling .
WARNING: Refer to Approved Equipment for Collision Repair Warning .

WARNING: Refer to Glass and Sheet Metal Handling Warning .
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove all related panels and components.

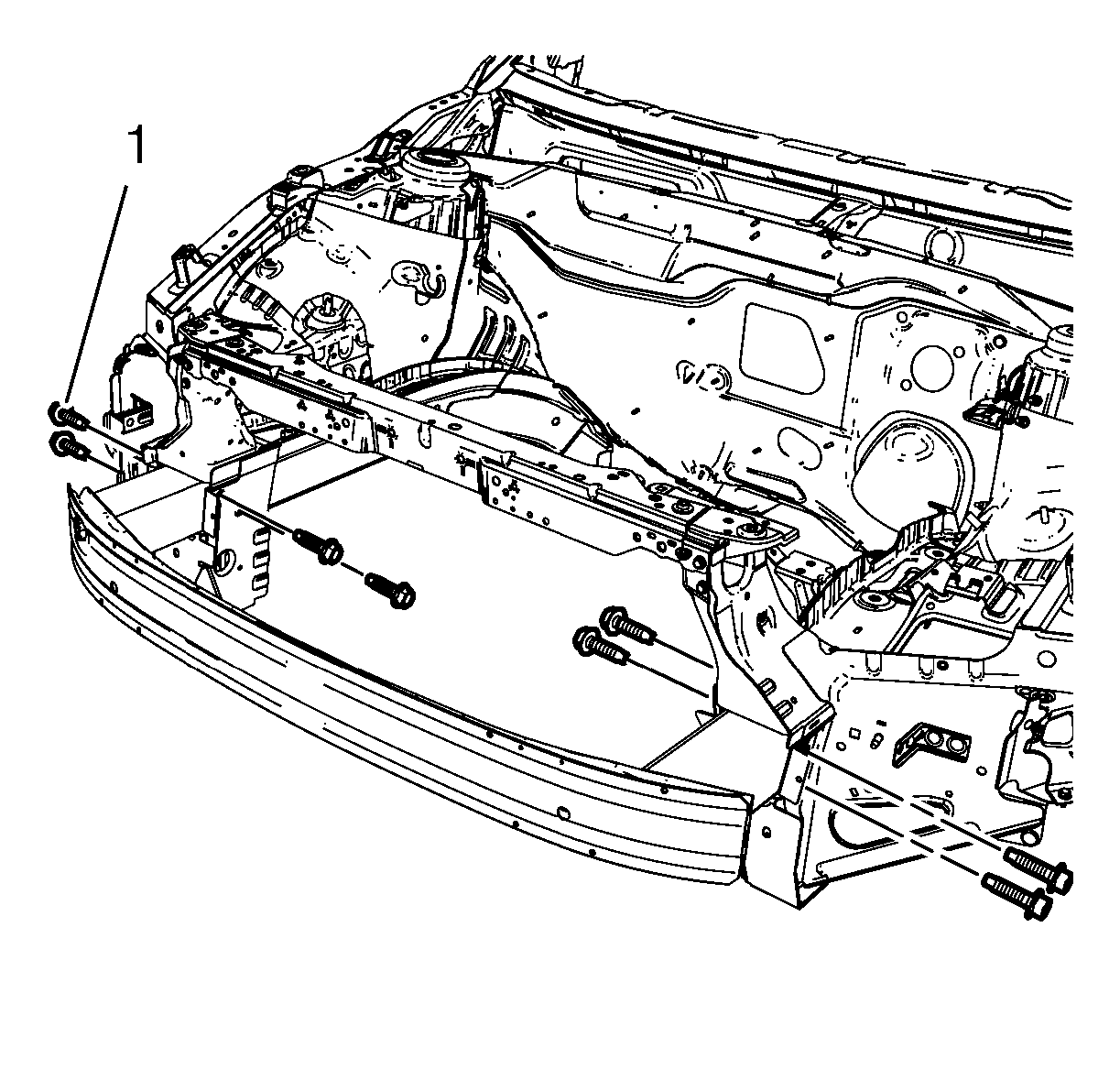

Remove the 8 front bumper impact bar bolts (1).

Fig 1: Front Bumper Impact Bar And Front Bumper Impact Bar Bolts
Courtesy of GENERAL MOTORS COMPANY

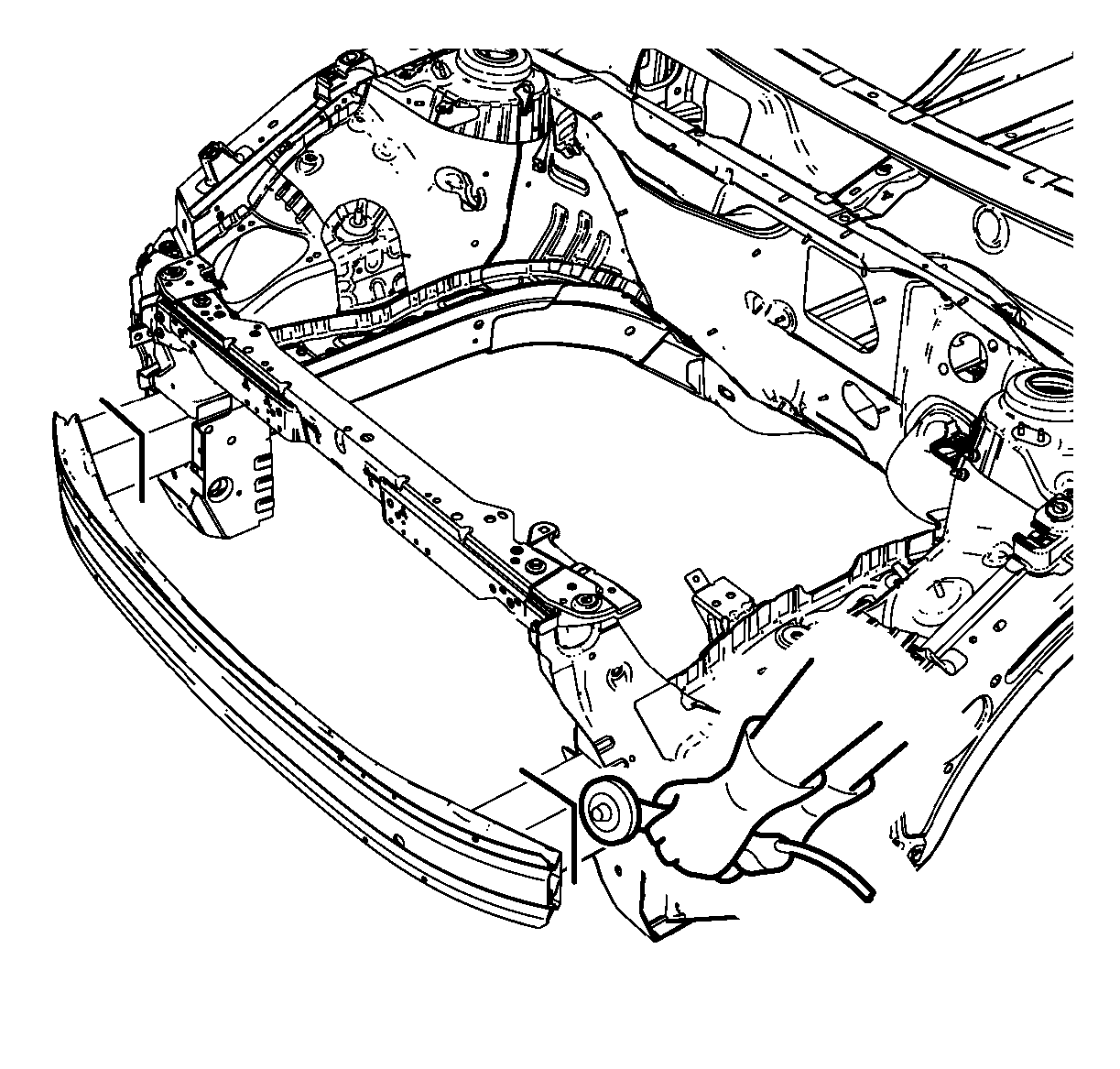

Cut the front bumper impact bar left and right.

Fig 2: Front Bumper Impact Bar Cut Points
Courtesy of GENERAL MOTORS COMPANY

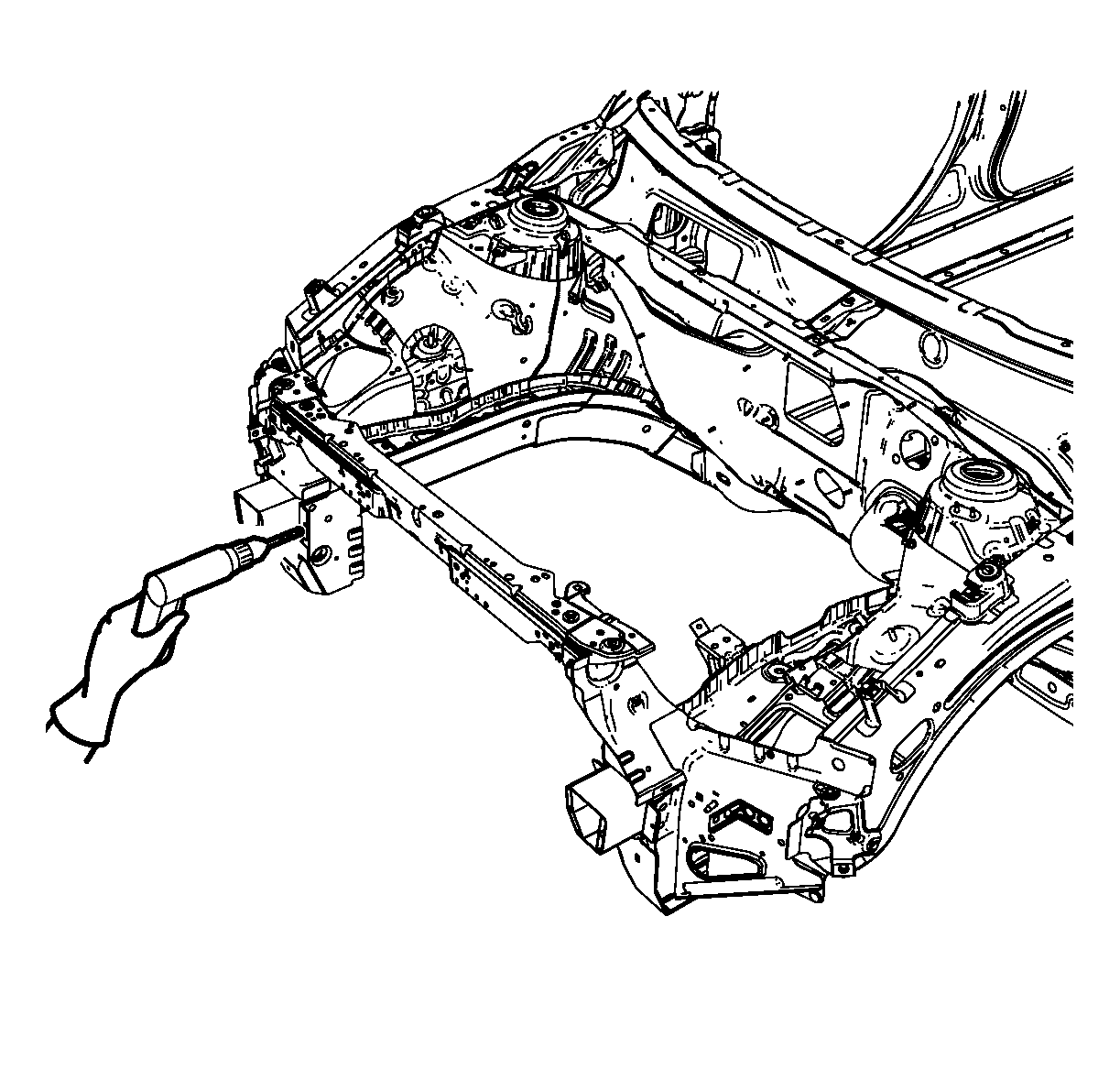

Locate and mark all factory welds.
Drill all factory welds.

Fig 3: Drilling Factory Welds
Courtesy of GENERAL MOTORS COMPANY

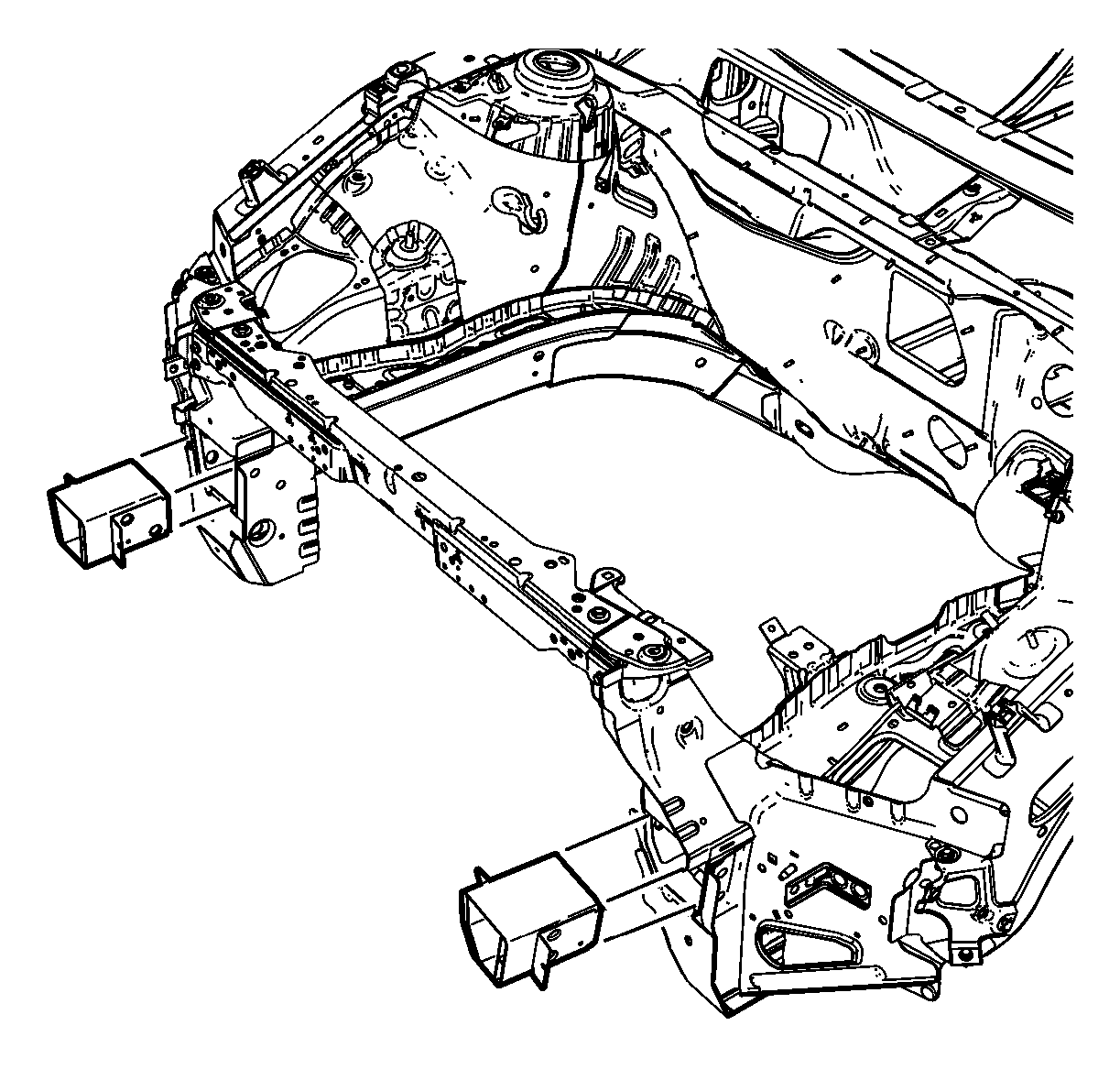

Remove the remaining parts of the front bumper impact bar.

Fig 4: Remaining Parts Of Front Bumper Impact Bar
Courtesy of GENERAL MOTORS COMPANY
