Front Bumper Fascia Outer Bracket Replacement

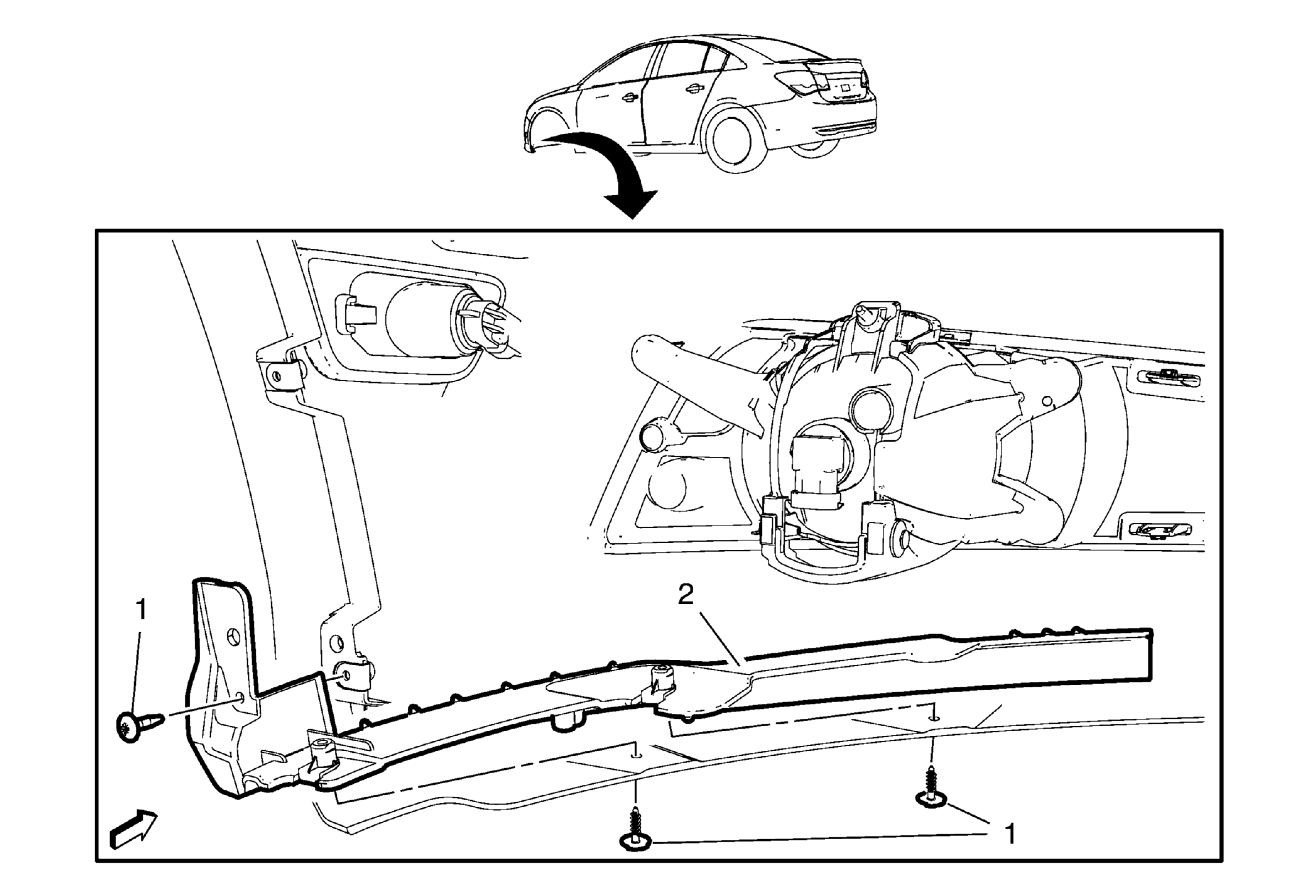

Fig 1: Front Bumper Fascia Outer Bracket
GM2372770Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1 Front Bumper Fascia Outer Bracket Bolt (Qty: 3)
2 Front Bumper Fascia Outer Bracket
