Front Bumper Fascia Guide Replacement

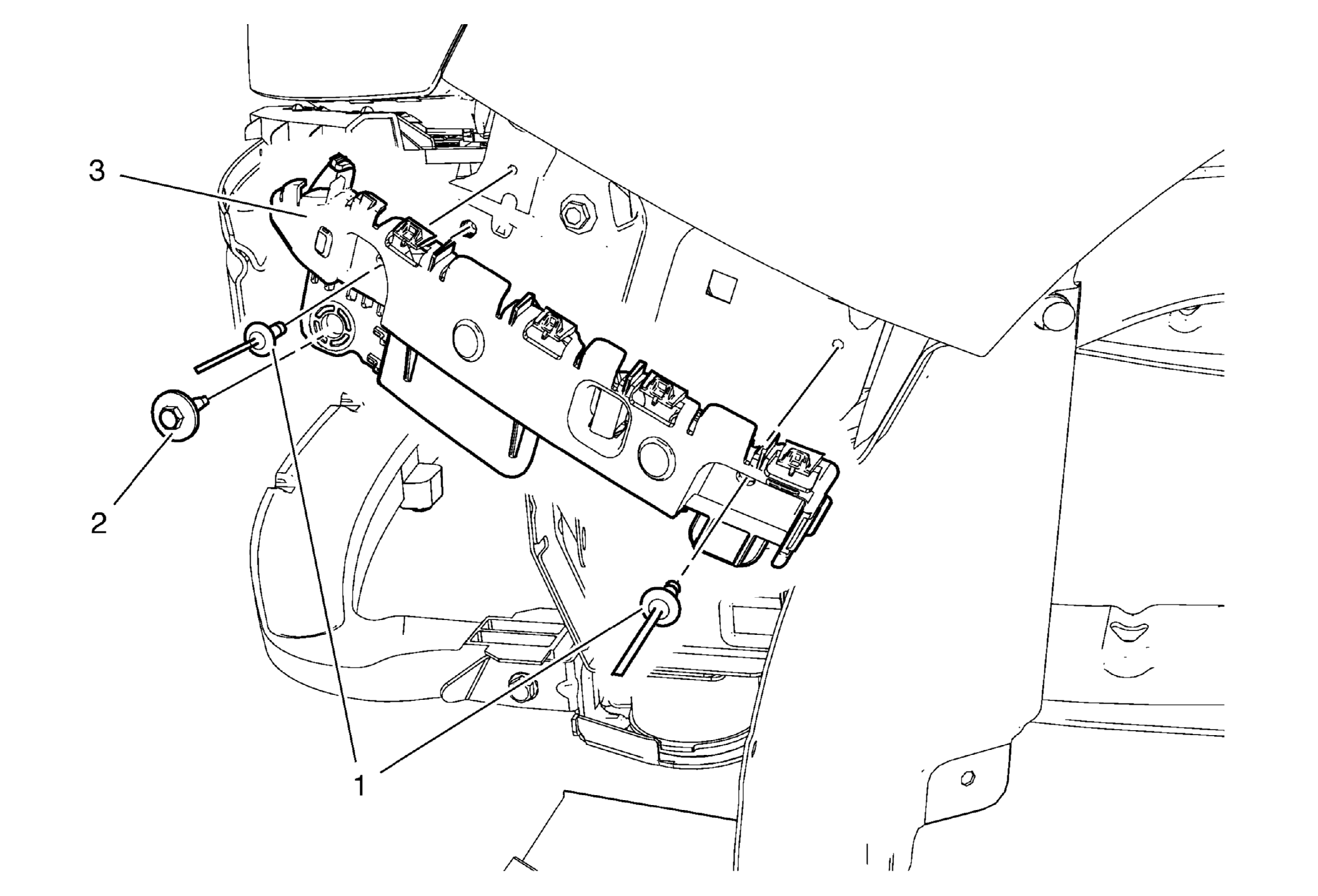

Fig 1: Front Bumper Fascia Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Guide Rivet (Qty: 2)
2	Headlamp Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (23 lb in)
3	Front Bumper Fascia Guide
