Theft Deterrent Alarm Replacement

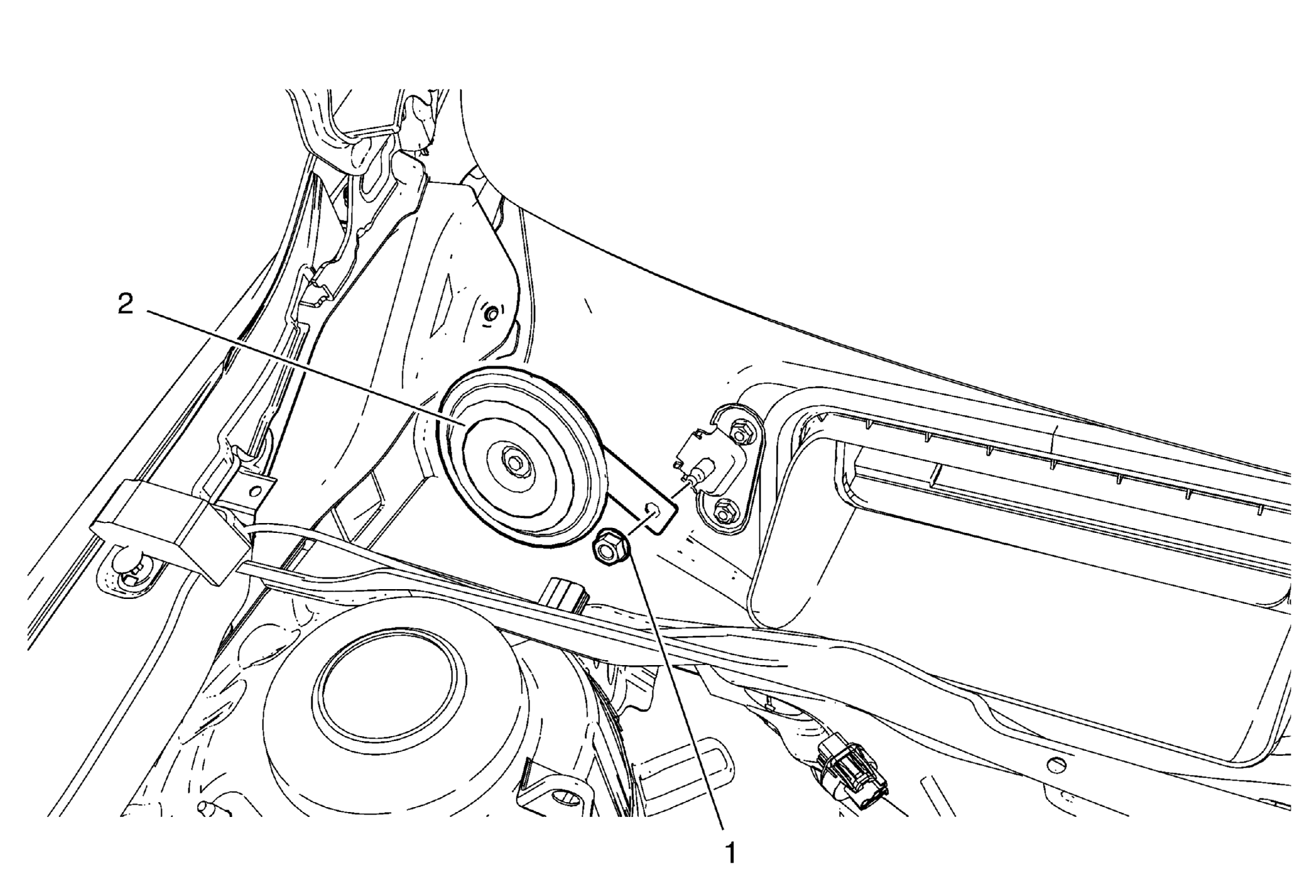

Fig 1: Theft Deterrent Alarm And Theft Deterrent Alarm Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Theft Deterrent Alarm Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Theft Deterrent Alarm Procedure Disconnect wiring connector.
