Door Lock/Indicator Wiring Schematics: Switches

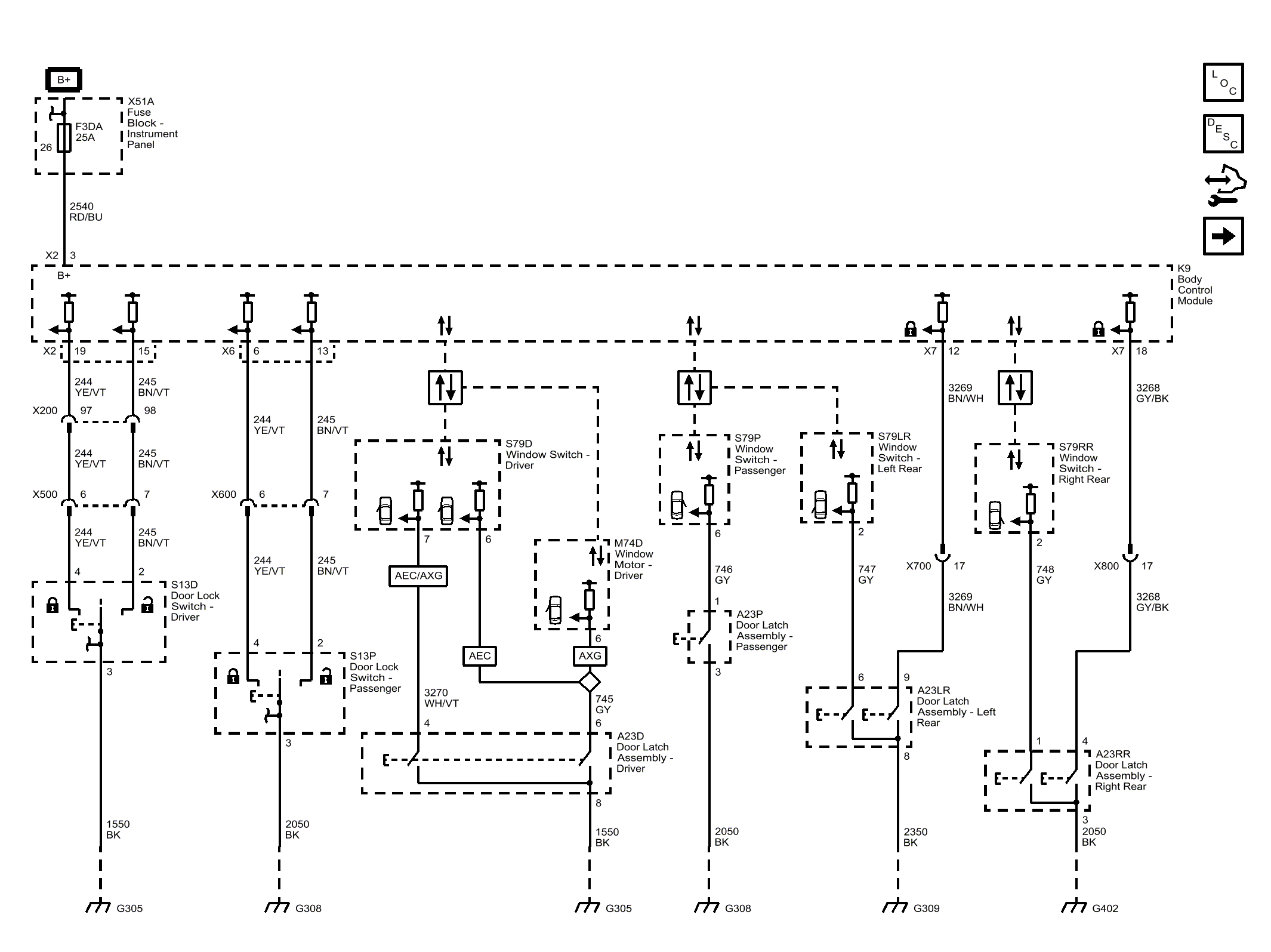

Fig 1: Switches

GM3814047

Courtesy of GENERAL MOTORS COMPANY
