Passive Entry - Module Power, Ground and Latches (ATH)

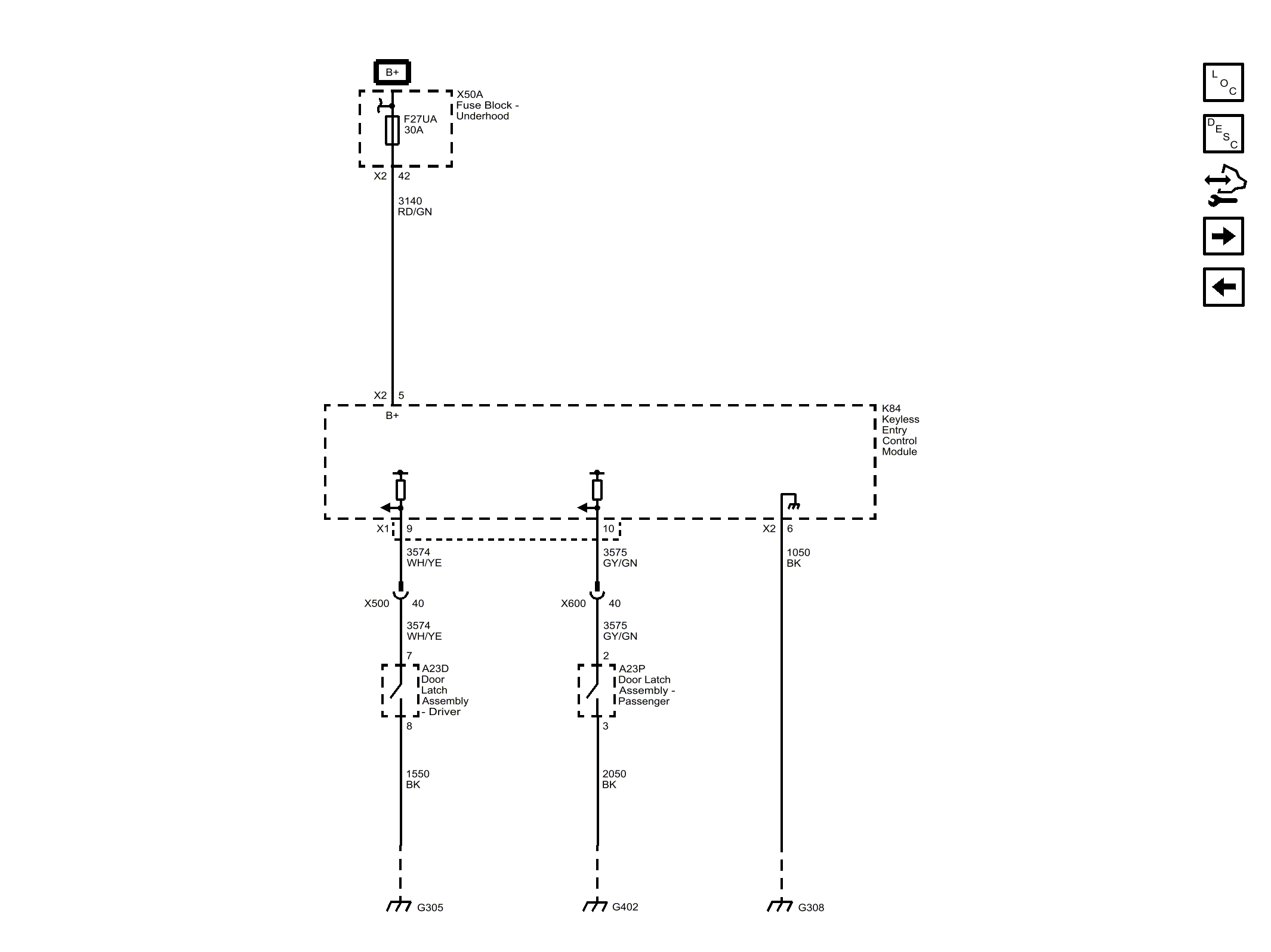

Fig 1: Passive Entry - Module Power, Ground and Latches (ATH)

GM3814050

Courtesy of GENERAL MOTORS COMPANY
