Removal Procedure

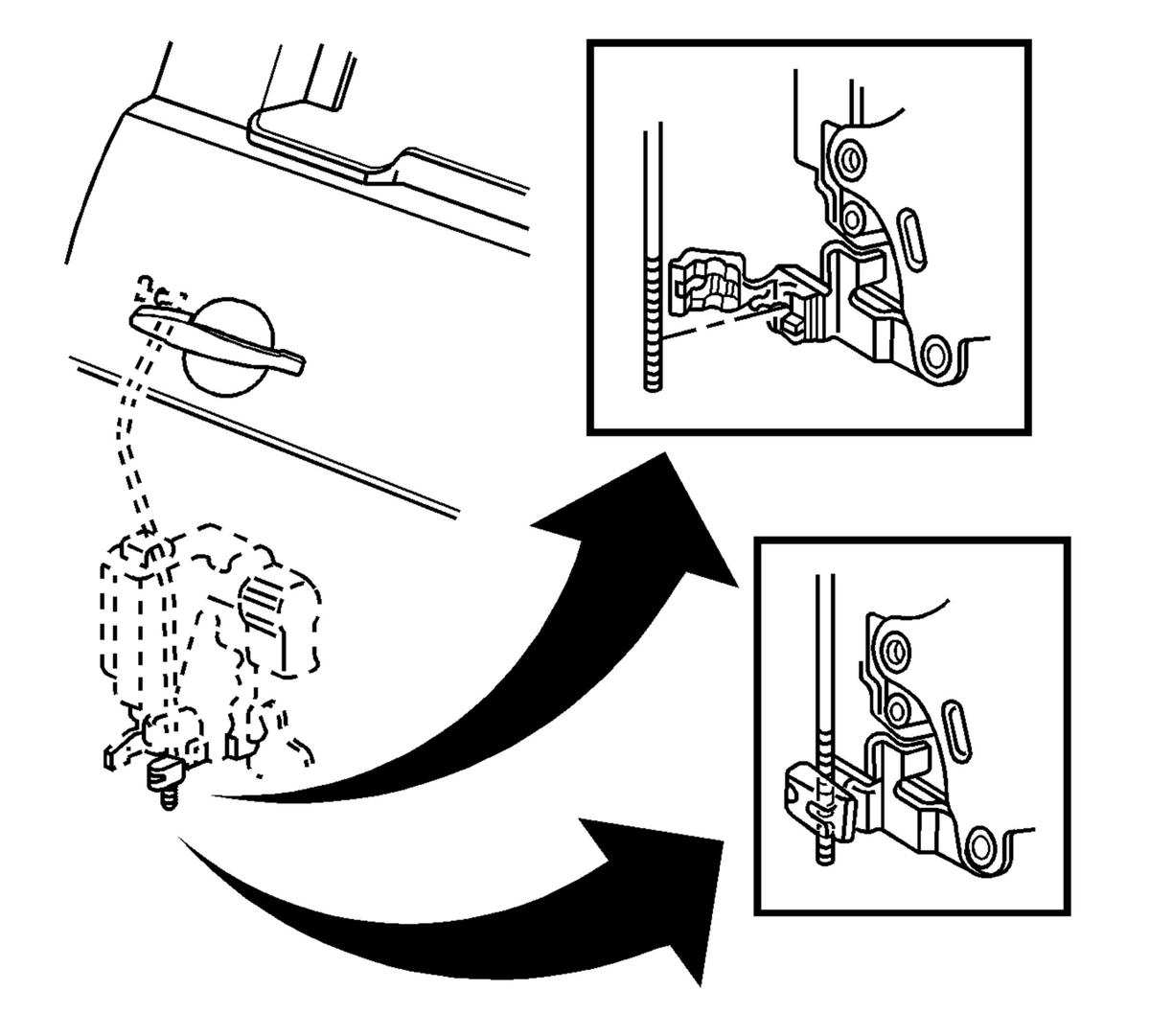

Fig 1: View Of Handle Rod To Lock Clip
GM1350838Courtesy of GENERAL MOTORS COMPANY
  1. Remove the rear door water deflector as needed. Refer to Rear Side Door Water Deflector Replacement .
  2. Use a flat-bladed tool to open the clip on the threaded rod connecting the lock to the outside handle.
  3. Adjust the travel of the handle by removing the threaded rod from the clip.
