Rear Side Door Lock Striker Replacement

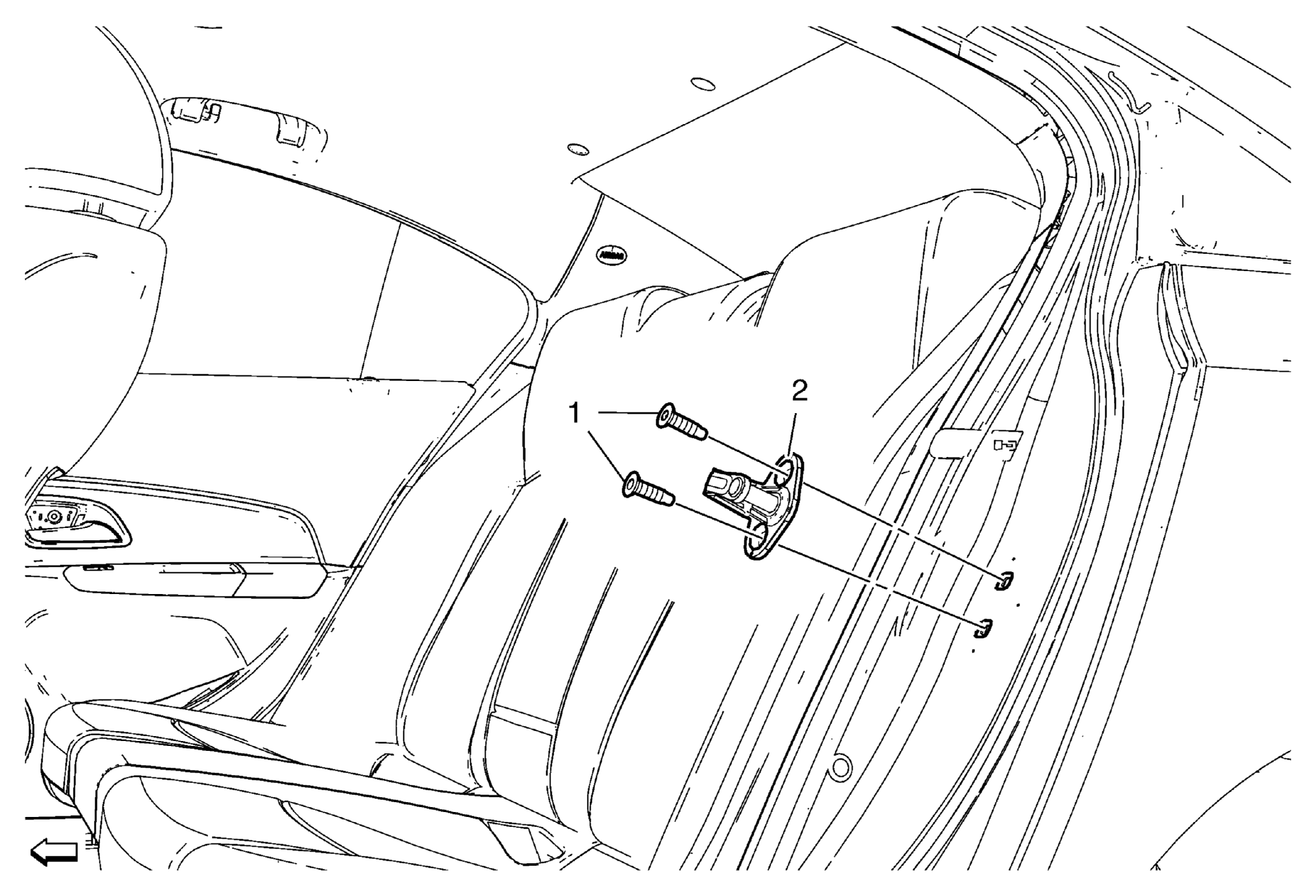

Fig 1: Rear Side Door Lock Striker And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Lock Striker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  25 N.m (18 lb ft)
2	Rear Side Door Lock Striker
