Rear Compartment Lid Latch Striker Replacement

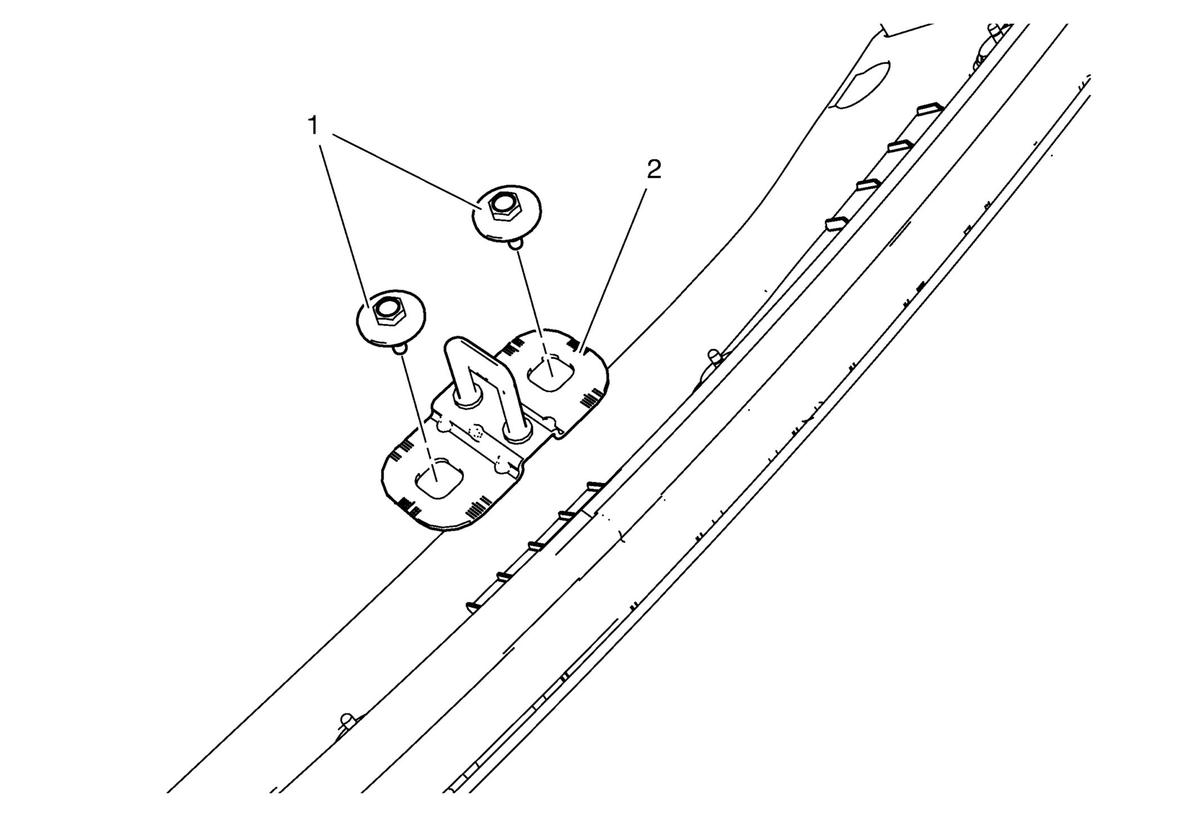

Fig 1: Rear Compartment Lid Latch Striker And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the rear compartment sill trim plate. Refer to Rear Compartment Sill Trim Plate Replacement .
1	Rear Compartment Lid Latch Striker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure  Use a grease pencil to outline the striker before removing the bolts. Tighten  9 N.m (80 lb in)
2	Rear Compartment Lid Latch Striker Procedure  Adjust the rear compartment lid latch striker after replacing, if needed.
