Front Side Door Lock Cover Replacement

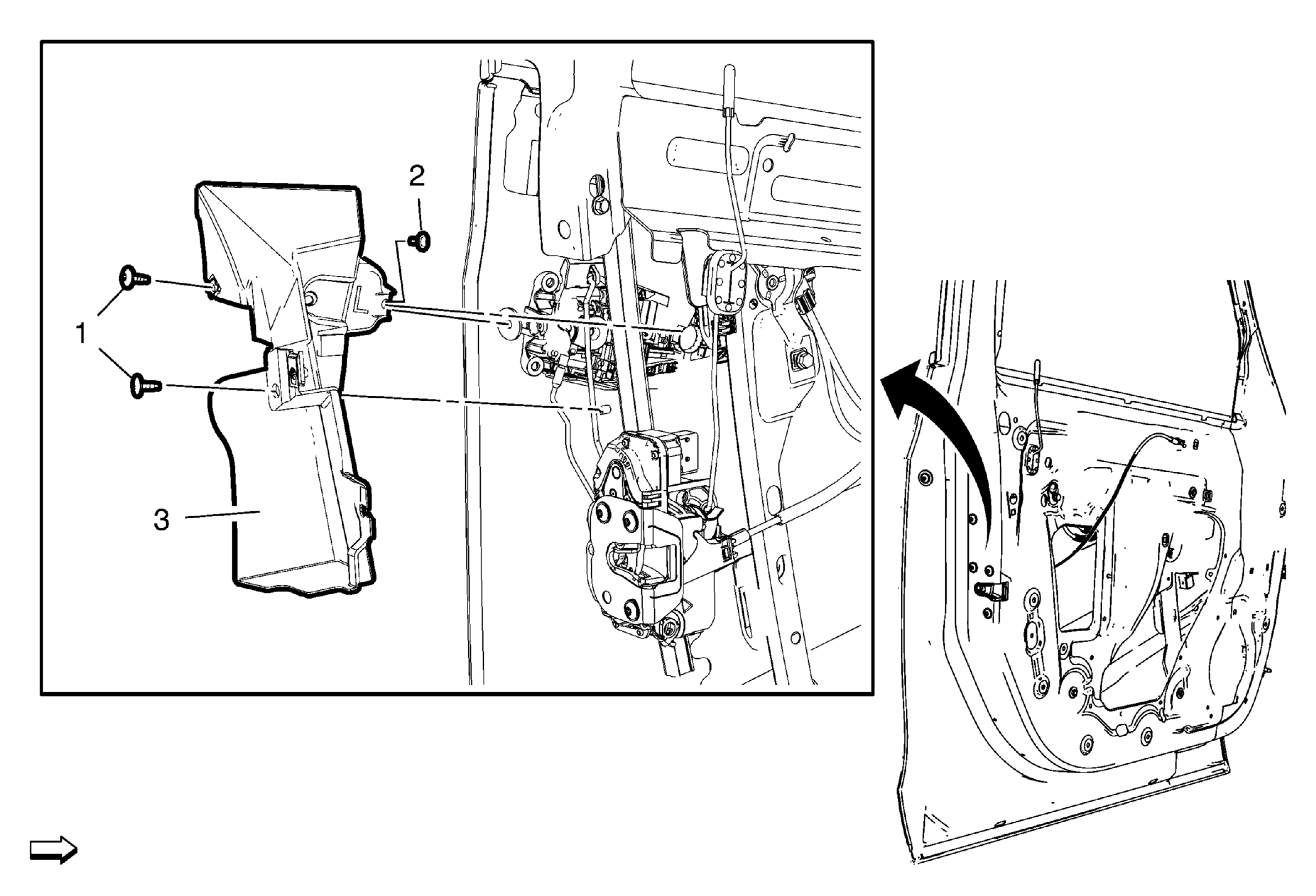

Fig 1: Front Side Door Lock Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Lock Cover Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Front Side Door Lock Cover Bolt Tighten  2.5 N.m (22 lb in)
3	Front Side Door Lock Cover
