Front Side Door Inside Handle Replacement

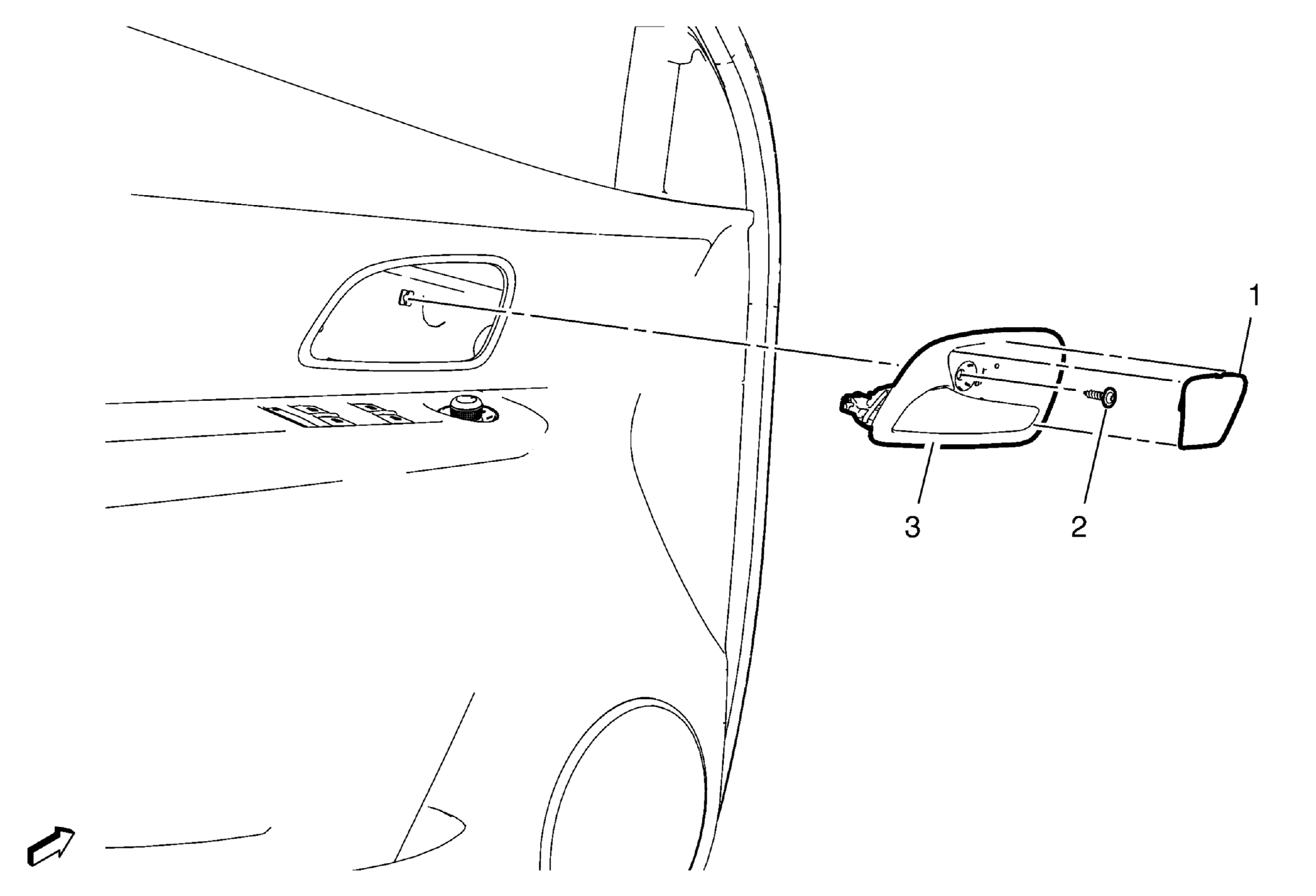

Fig 1: Front Side Door Inside Handle
GM2949022Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Inside Handle Bracket Cap
Procedure
Use a flat-bladed tool to remove.
2 Front Side Door Inside Handle Bracket Bolt
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
3 Front Side Door Inside Handle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Unlock the 4 retaining tabs.
  3. Unlock the front side door inside handle cable.
