Luggage Compartment Block Diagram

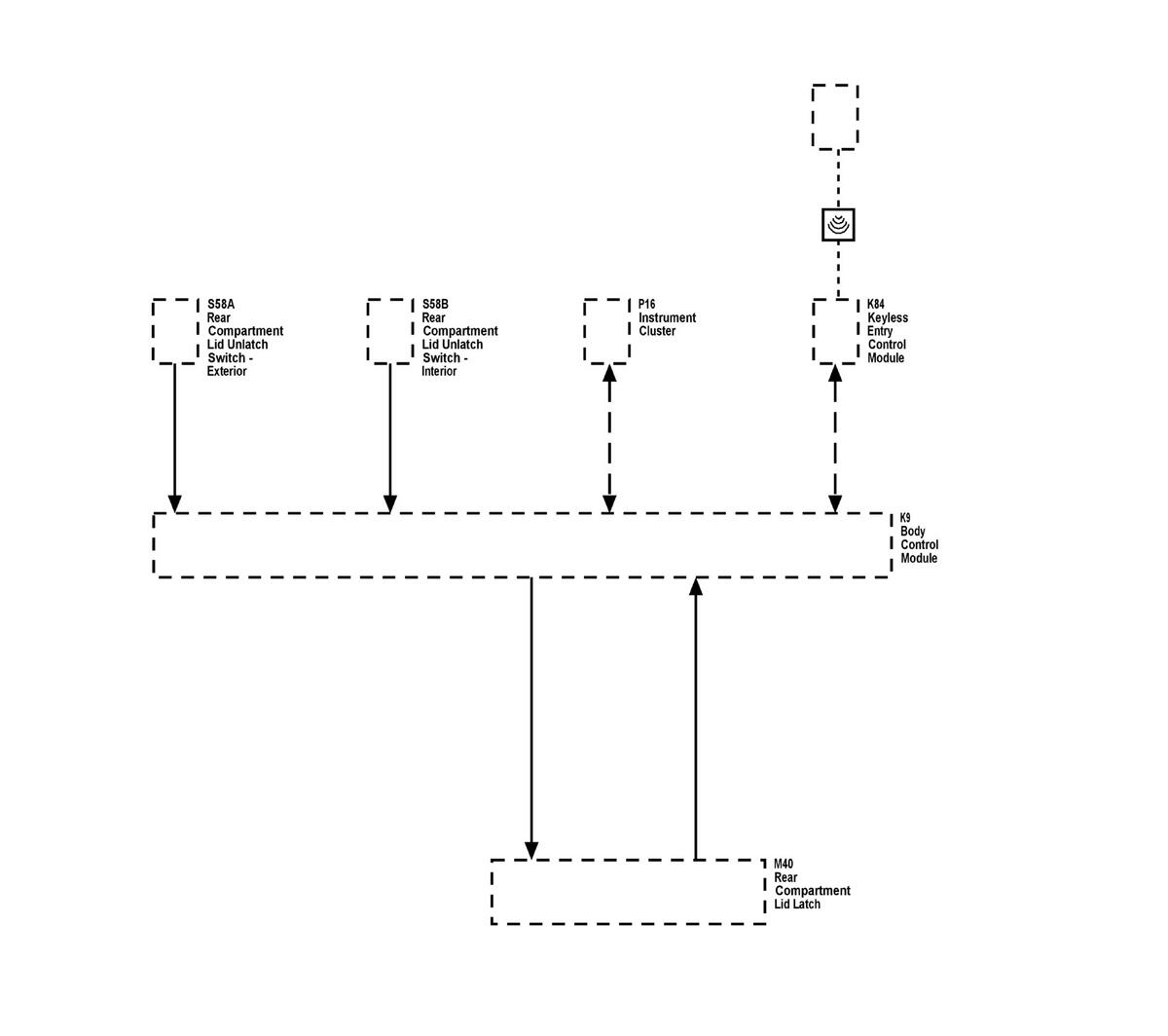

Fig 1: Luggage Compartment Block Diagram
GM3461369Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WL Wireless
K84 K84 Keyless Entry Control Module
P16 P16 Instrument Cluster
S58B S58B Rear Compartment Lid Unlatch Switch - Interior
S58A S58A Rear Compartment Lid Unlatch Switch - Exterior
K9 K9 Body Control Module
M40 M40 Rear Compartment Lid Latch
