Passive Entry and Passive Start Antennas (ATH)

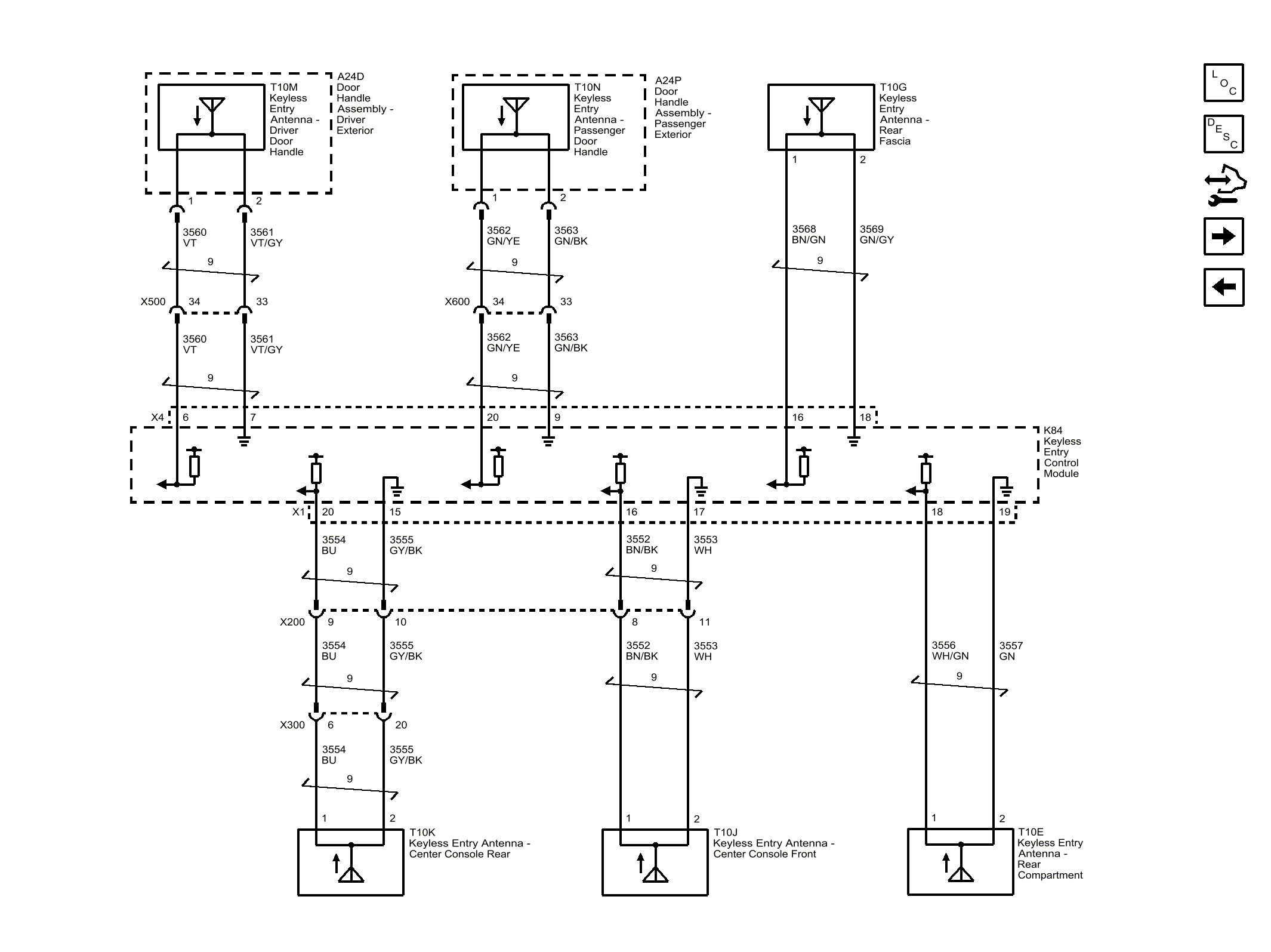

Fig 1: Passive Entry and Passive Start Antennas (ATH)

GM3814580

Courtesy of GENERAL MOTORS COMPANY
