Door Handle Switches and References (ATH)

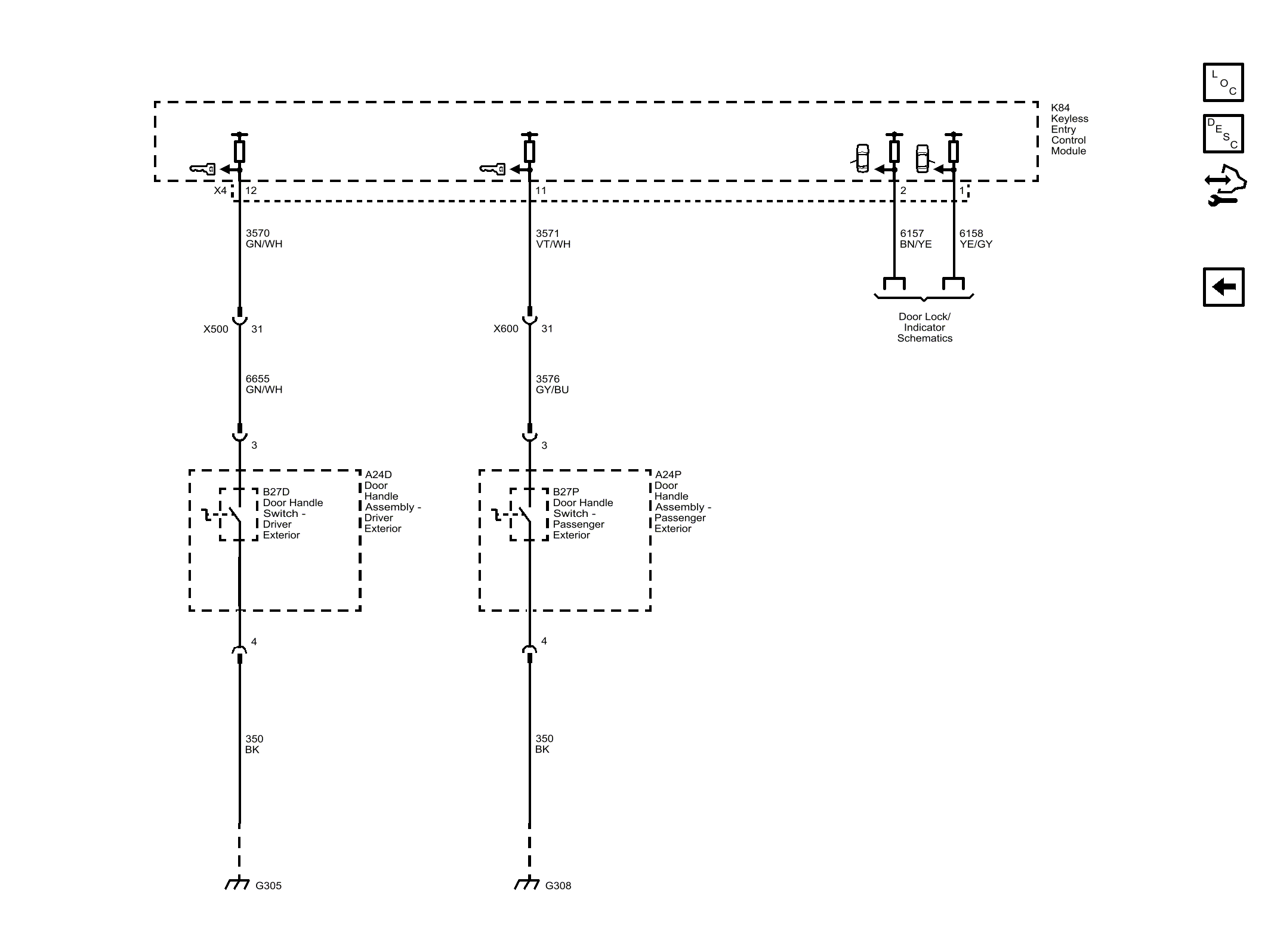

Fig 1: Door Handle Switches and References (ATH)

GM3814581

Courtesy of GENERAL MOTORS COMPANY
