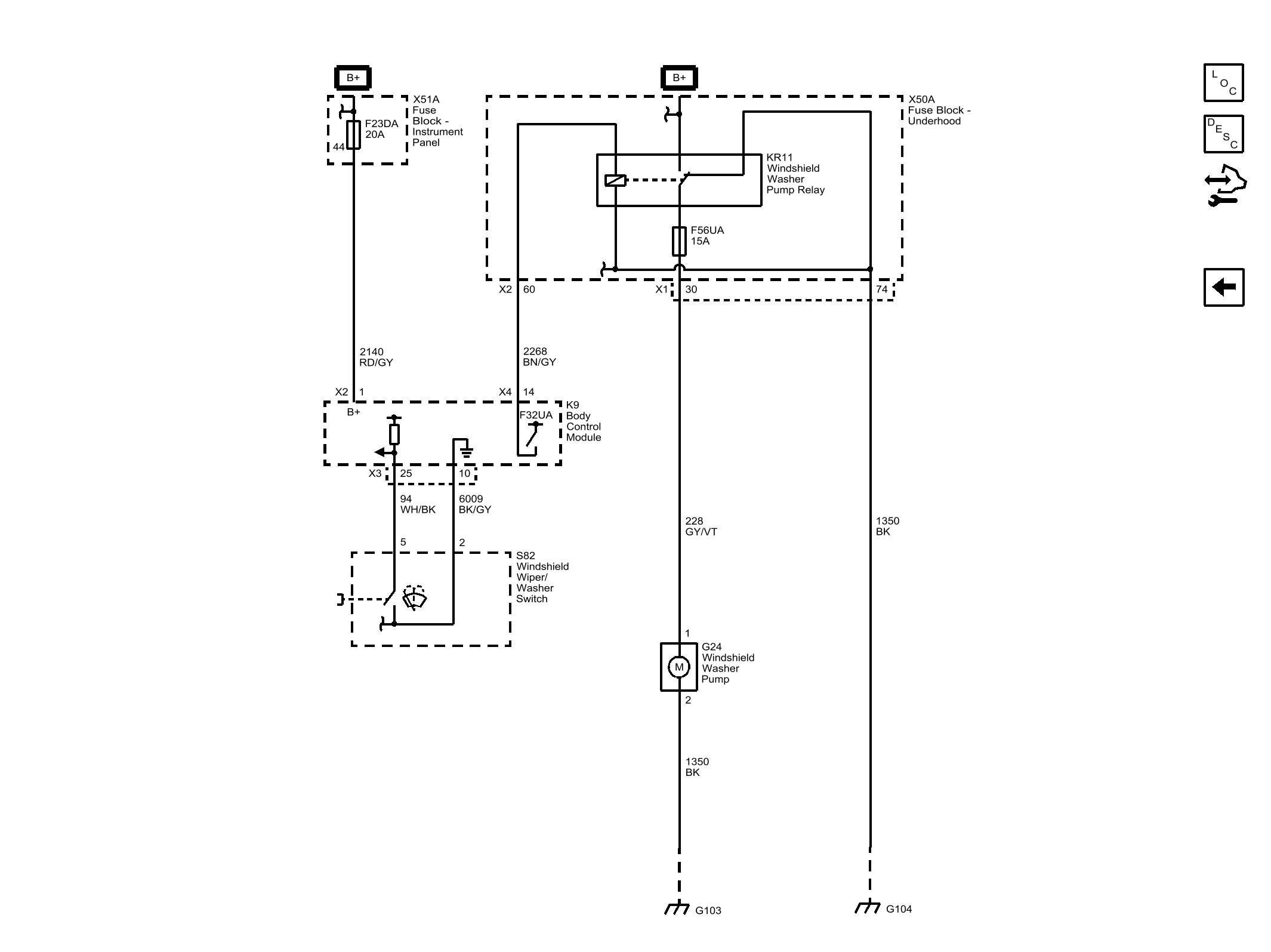

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wiper System And Washer System >> Schematic Wiring Diagrams >> Wiper/Washer Wiring Schematics >> Washer
