Removal Procedure

  1. Open the hood.

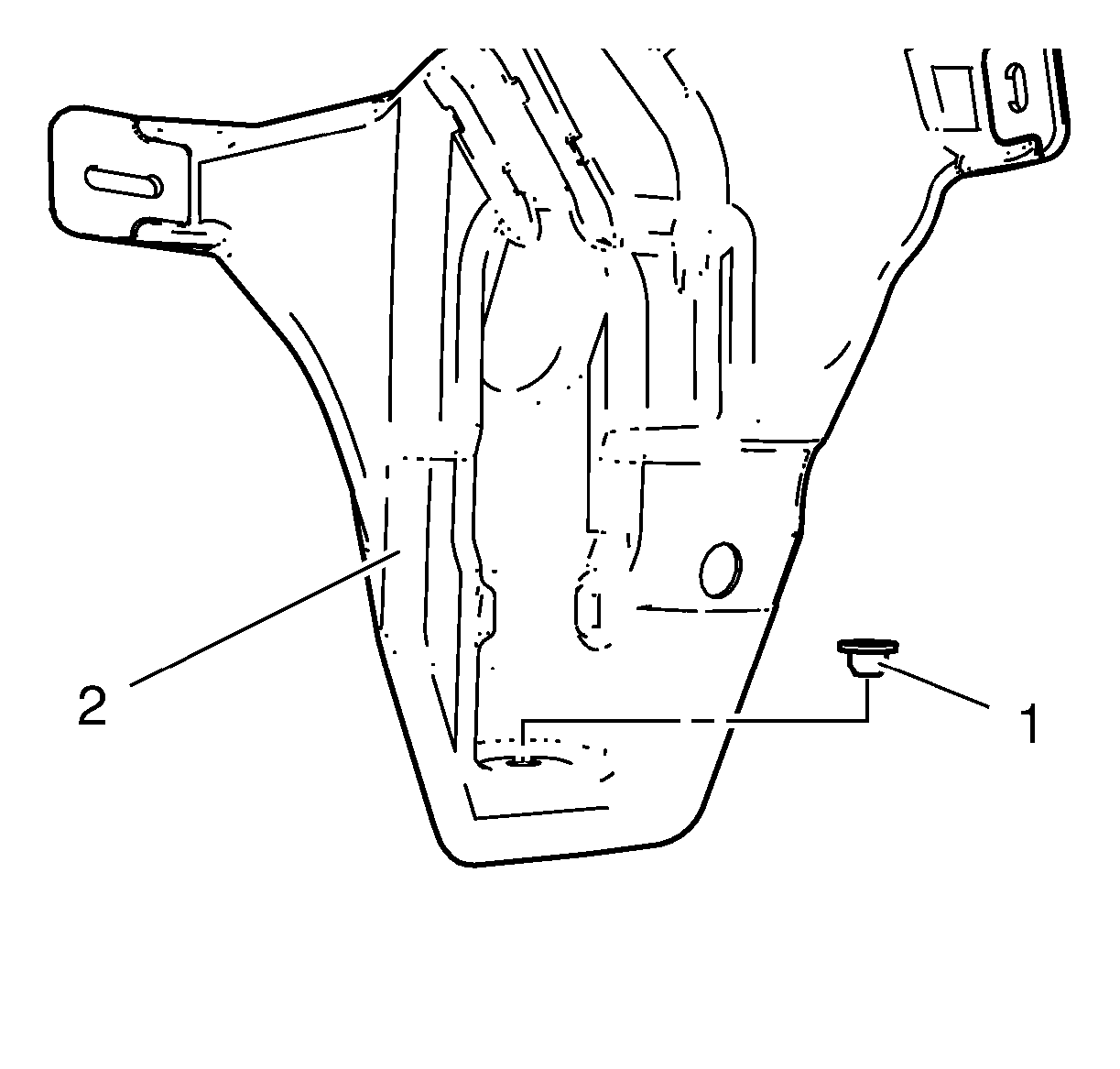

    Fig 1: Windshield Washer Pump Seal
    GM2027564Courtesy of GENERAL MOTORS COMPANY
  2. Remove the windshield washer pump. Refer to Windshield Washer Pump Replacement
  3. Using a small flat-bladed tool, remove the washer pump terminal seal (1) from the washer solvent container (2).
