Installation Procedure

  1. Position the washer pump terminal seal (4) to the washer solvent container (5), pressing in until fully seated.

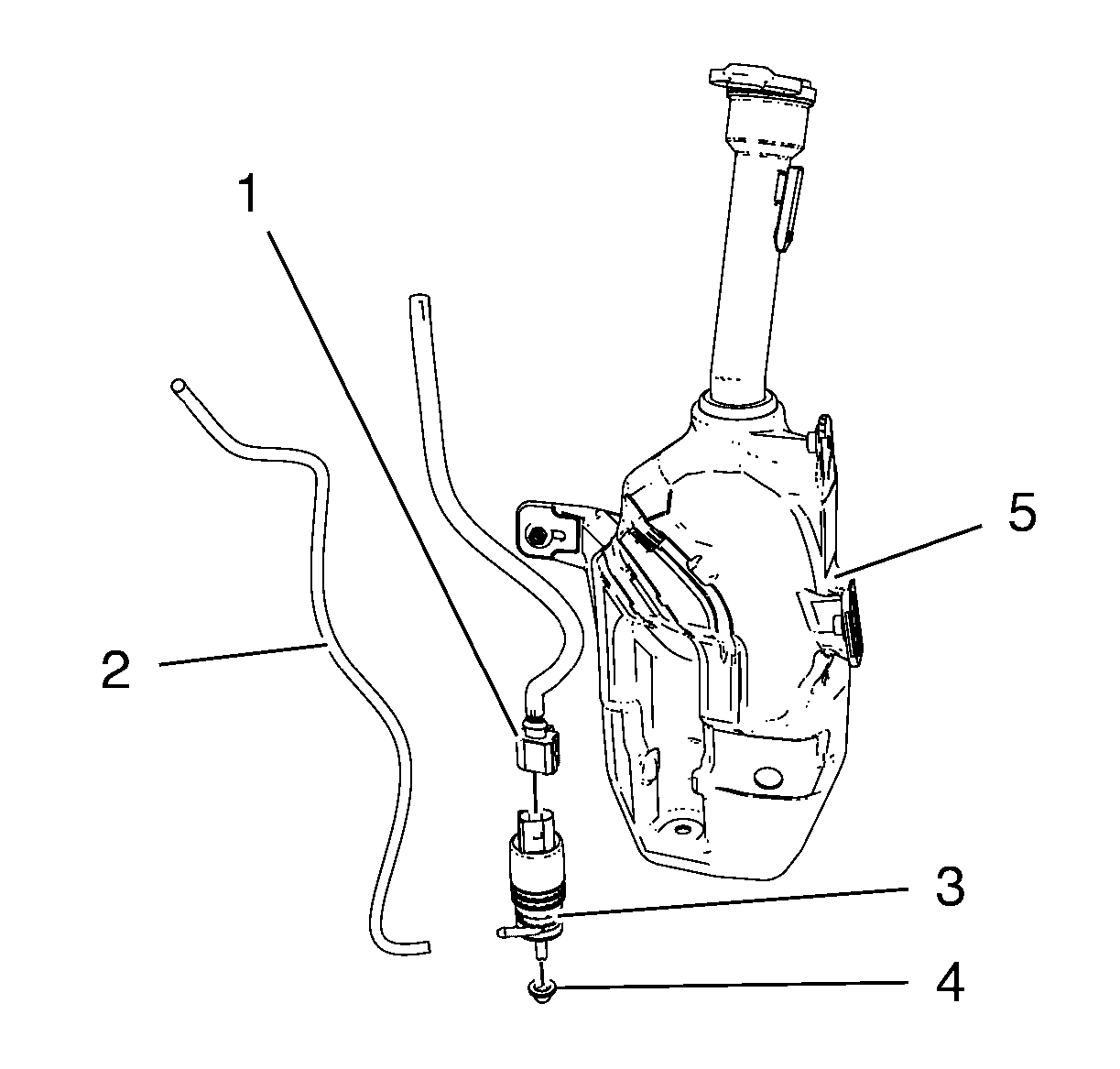

    Fig 1: Windshield Washer Pump Components
    GM2027123Courtesy of GENERAL MOTORS COMPANY
  2. Using full strength windshield washer solvent as a lubricant on the terminal seal, position the washer pump (3) to the washer solvent container (5) pressing in until fully seated.
  3. Connect the washer pump electrical connector (1).
  4. Connect the washer pump hose (2) to the washer pump (5).
  5. Install the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  6. Fill the washer solvent container with washer solvent.
  7. Inspect the washer system for proper operation.
