Windshield Washer Nozzle Replacement

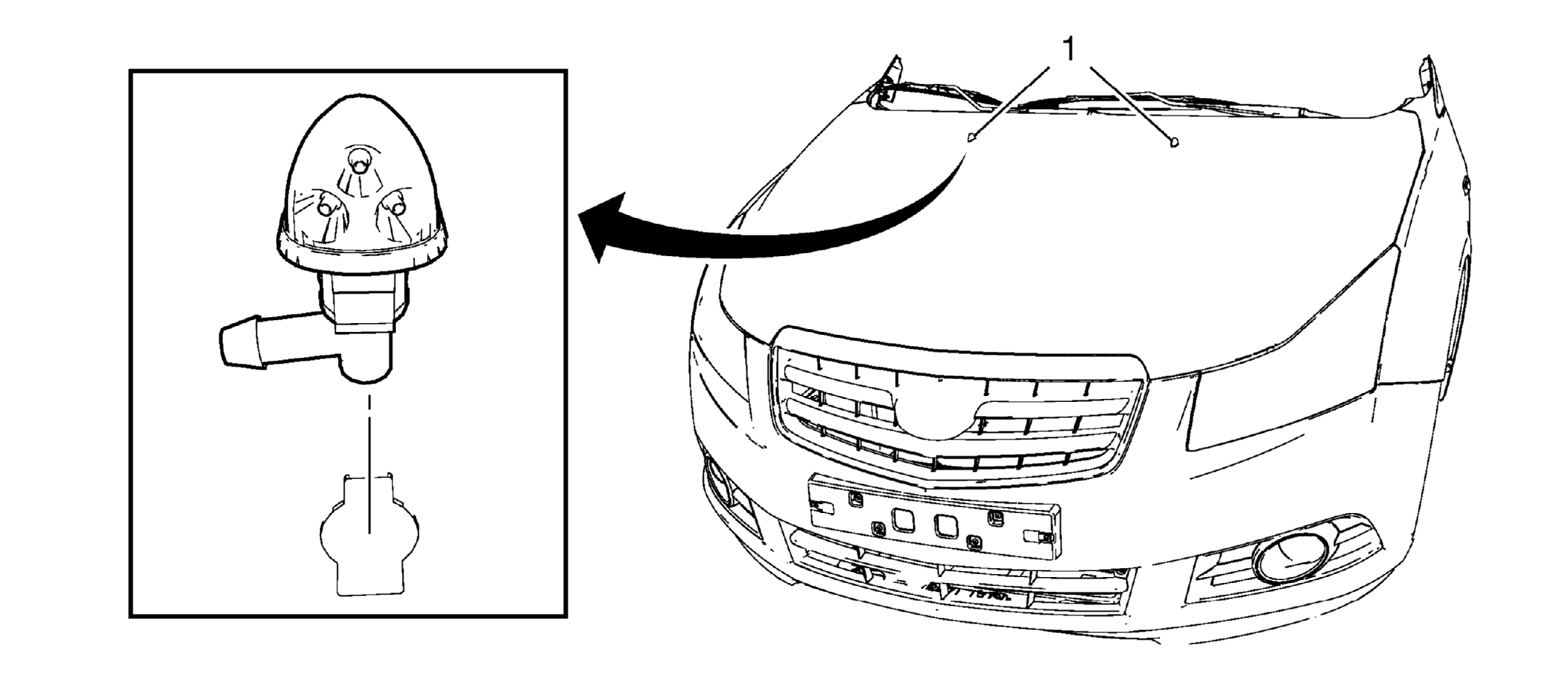

Fig 1: Windshield Washer Nozzle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the washer hose from the washer nozzles. Remove the hood insulator. Refer to Hood Insulator Replacement .
1	Windshield Washer Nozzle Assembly Procedure Pinch the washer nozzle from the bottom side in order to release the nozzle and push the nozzle outboard from the hood to remove.

Callout

Component Name

Preliminary Procedures

Disconnect the washer hose from the washer nozzles.
Remove the hood insulator. Refer to Hood Insulator Replacement .

Windshield Washer Nozzle Assembly
Procedure
Pinch the washer nozzle from the bottom side in order to release the nozzle and push the nozzle outboard from the hood to remove.
