Steering Wheel Secondary/Configurable Control Wiring Schematics: W1Y

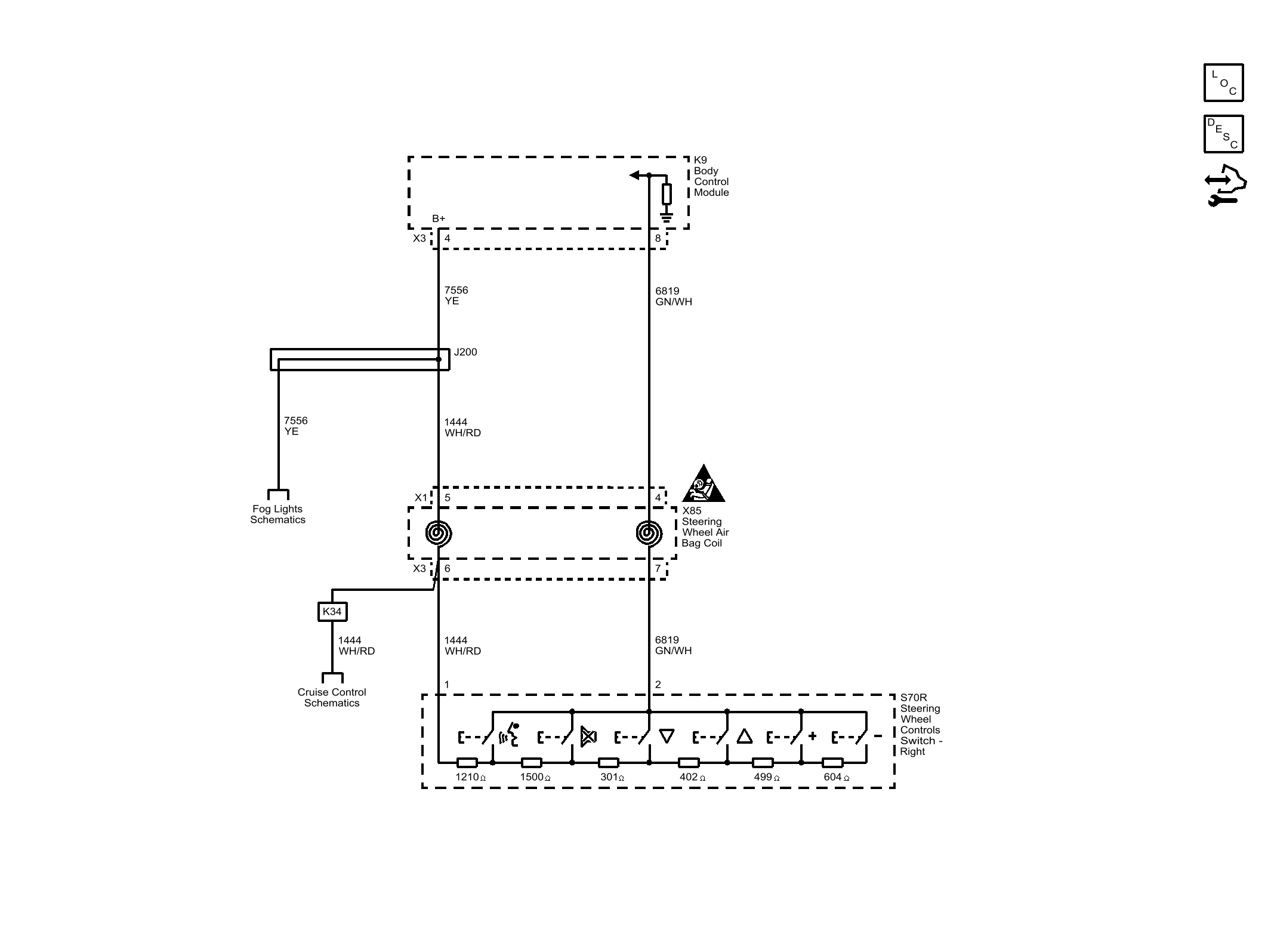

Fig 1: W1Y

GM3814077

Courtesy of GENERAL MOTORS COMPANY
