Instrument Panel, Console and Steering Wheel

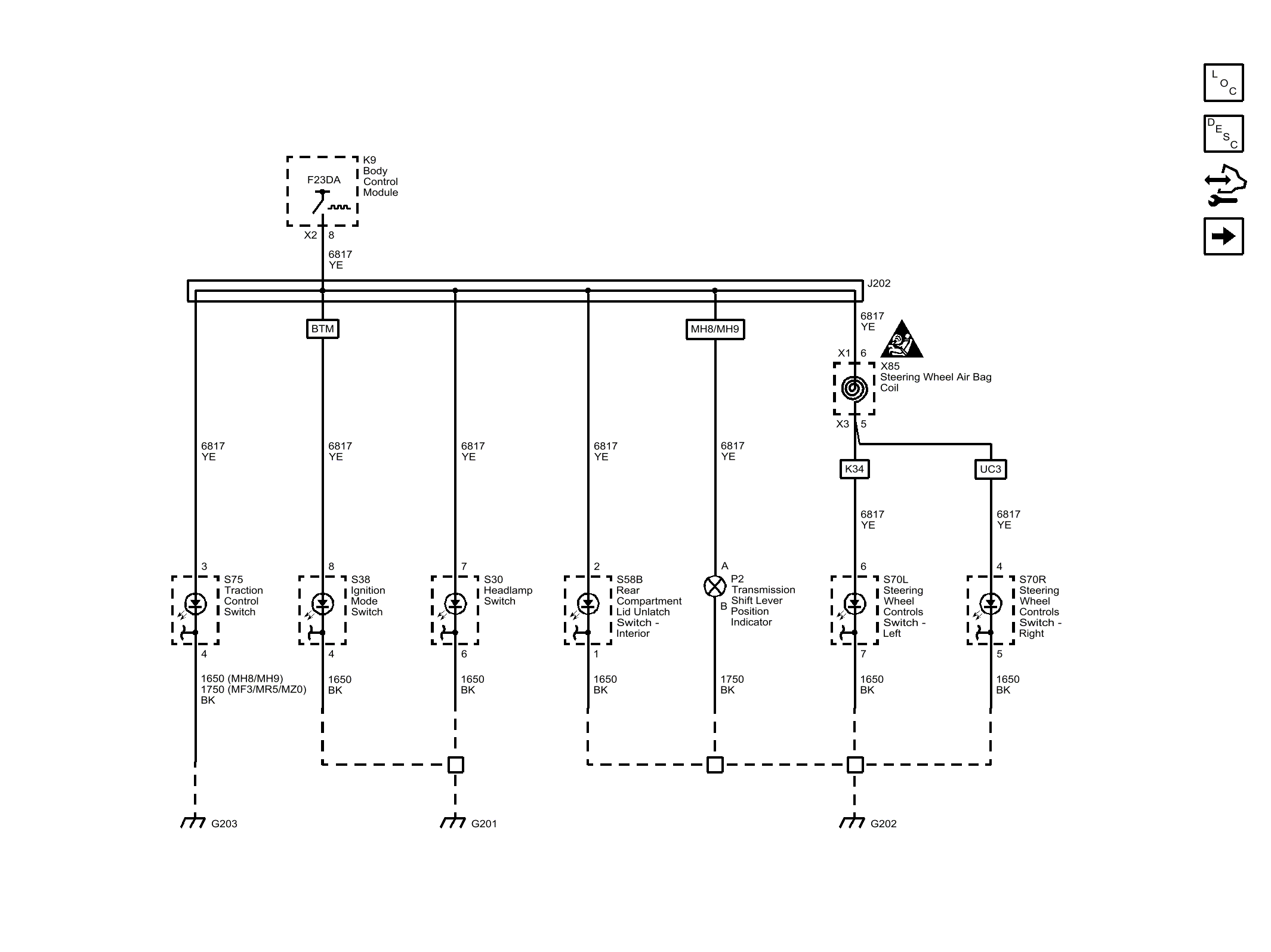

Fig 1: Instrument Panel, Console and Steering Wheel

GM3814037

Courtesy of GENERAL MOTORS COMPANY
